Every Season

  1. CC014036
    CC014036-UN-24OCT98

    1 - Gear Case

    A - Refill Plug

    B - Check Plug

    C - Drain Plug

    Check oil level and fill gear case to check plug (B) level using oil specified under Gear Oil in this Section. Capacity: 3.8 L (1 US gal.).

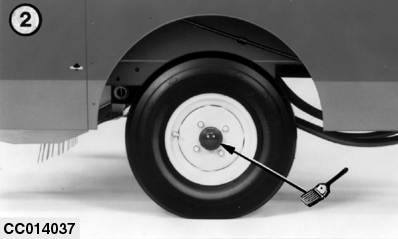

  2. CC014037
    CC014037-UN-24OCT98

    2 - Wheel Bearing

    Remove wheels, clean, repack, and adjust bearings. Lubricate with John Deere GREASE-GARD.

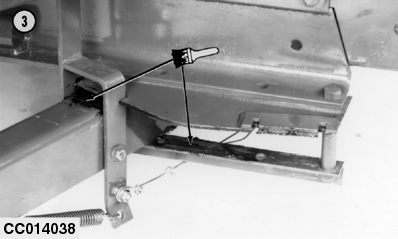

  3. CC014038
    CC014038-UN-24OCT98

    3 - Tongue

    Lubricate with John Deere GREASE-GARD.

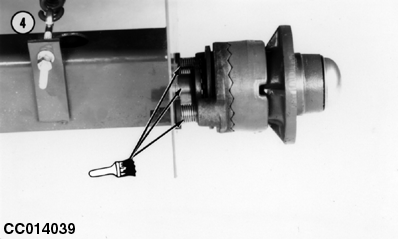

  4. CC014039
    CC014039-UN-24OCT98

    Wheel Lock Axle (349, 359 and 459)

    4 - Wheel Lock Axle

    Lubricate with John Deere GREASE-GARD.

OUCC002,00022E1-19-20100326
