Knotter Difficulties

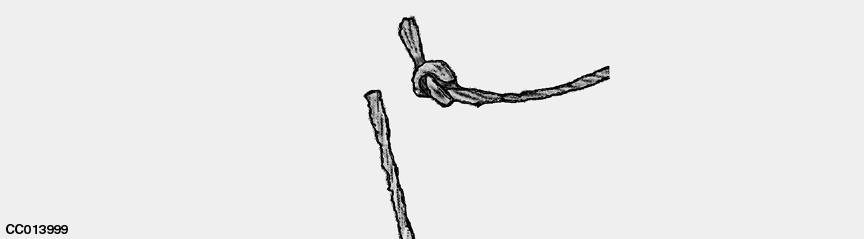

CC013999-UN-22OCT98
| Symptom | Problem | Solution |
|
Knot in Twine Over Bale Only | Tucker fingers did not pick up needle twine or move into tying position properly |
Adjust tucker fingers. Adjust twine disk and/or needles. Check twine tension at twine disk and twine box. Install plungerhead extensions. |
|
Hay dogs not holding end of bale1 |
Free seized hay dogs. Replace broken hay dog springs. Reduce feeding rate. Install plungerhead extensions. |
|
1 Hay dogs must extend into bale case completely
with each plungerhead stroke.
|
OUCC002,00022E4-19-20060703 |
