Knotter Difficulties—Continued

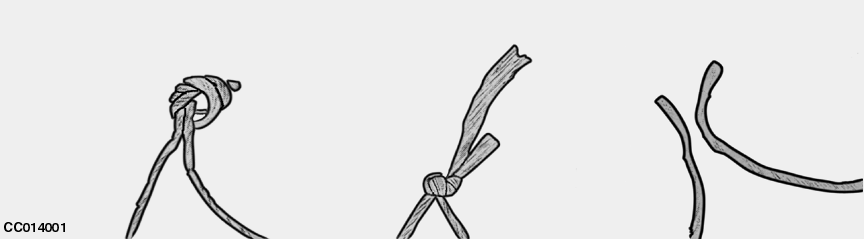

CC014001-UN-22OCT98
| Symptom | Problem | Solution |
|
Knot too loose | Worn or damaged billhook tongue |
Replace billhook. See the John Deere dealer. |
|
Bale density too low |
Increase bale density. |
|
|
Normal wear of knotter |
Adjust knife arm wiper. |
|
|
Improper adjustment of twine disk |
Adjust twine disk. |
|
Twine ends uneven | Insufficient tension on twine disk |
Tighten twine disk spring. |
|
Dull or chipped knife |
Sharpen or replace knife. |
|
No knot in either twine end | Twine sheared in twine disks |
Loosen twine holder and/or remove all sharp edges and burrs on twine holder and disks. |
|
Billhook not revolving |
Check for lost or sheared pin in billhook pinion. |
|
|
Billhook tongue fails to open |
Check for lost billhook tongue roller, excessive wear on roller and cam face, or damaged billhook tongue. |
|
OUCC002,00022E6-19-20060703 |
