Knotter Difficulties—Continued

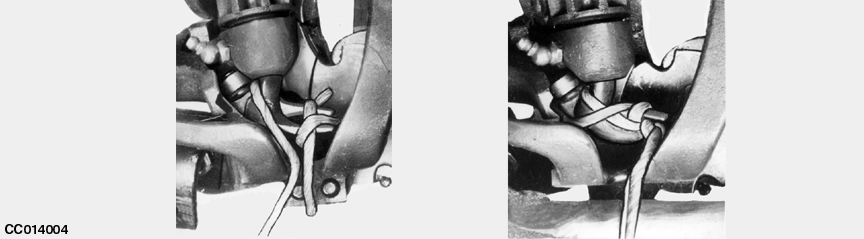

CC014004-UN-22OCT98
| Symptom | Problem | Solution |
|
Needle twine over billhook tongue roller | Needle twine does not enter twine disk |
Check twine disk timing and/or adjust needles. Check for sheared or lost pin in twine disk pinion or in disk worm gear. Make certain twine coming from box is correctly passing tensioning devices on box. |
|
Improper twine tension |
Adjust twine tension. |
|
|
Improper twine threading |
See in Preparing the Baler Section. |
|
Needle twine over billhook tongue roller and second knot tied on billhook | As for preceding malfunction; however, this condition occurs usually more often than the condition described above |
Make corrections as instructed previously; examine complete knotter for broken or damaged parts. |
|
OUCC002,00022E9-19-20100323 |
