Knotter Difficulties—Continued
CC014005-UN-22OCT98
| Symptom | Problem | Solution |
|

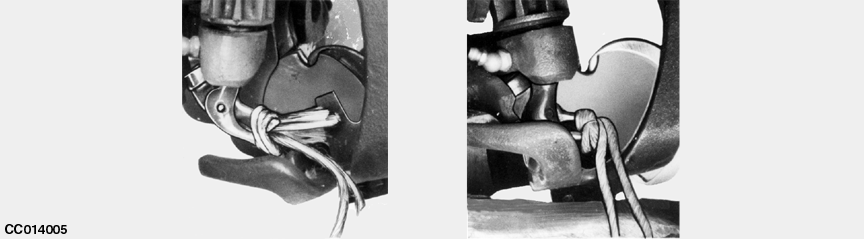

Knot not stripped off billhook | Excessive billhook tongue tension |
Loosen adjusting nut of billhook pressure arm spring. |
|
Insufficient clearance between billhook and knife (wiper) arm |
Adjust clearance. |
|
|
Knife arm wiper is not contacting back face of billhook |
Adjust wiper plate so that wiper is in proper contact with billhook. |
|
|
Knife arm lift is not sufficient |
Bend knife arm to increase movement past end of billhook. |
|
|
Rough billhook |
Smooth off all rough edges on billhook with emery cloth. |
|
|
Worn or bent billhook |
Replace billhook. See the John Deere dealer. |
|
|
Insufficient bale density |
Increase bale density. |
|
|
Twine tension too high |
Reduce tension. |
|
|
Improper twine disk adjustment |
Adjust disk timing. |
|
Needle twine goes under billhook tongue during first quarter of billhook travel | Tucker fingers not carrying twine back to tying position |
Adjust tucker fingers. |
|
OUCC002,00022EA-19-20060703 |
