Place Needles in Home Position

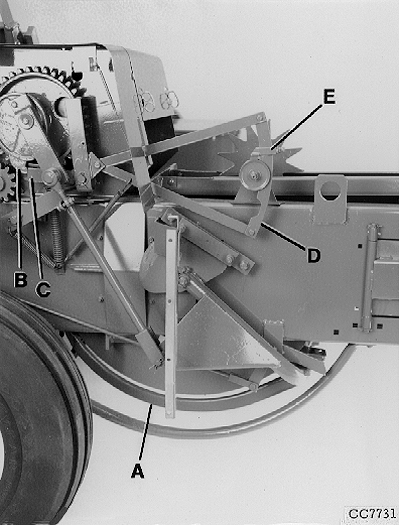

CC7731-UN-23SEP98

A - Needles

B - Trip Dog

C - Trip Arm

D - Measuring Arm

E - Stop

Needles (A) are in home position when:

• They are in the rearmost position.
• Trip dog (B) contacts trip arm (C).
• Measuring arm (D) is against its stop (E).
