Adjust Bale Measuring Control

CC7783
CC7783-UN-06OCT98

A - Stop

B - Sheave

C - Screws

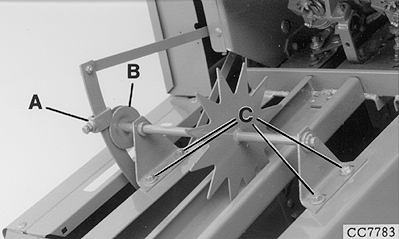

Locate the needles in ”home” position as shown with measuring arm stop (A) resting on measuring wheel shaft sheave (B).

Slightly loosen the four measuring wheel mounting screws (C).

  1. Adjust Trip Arm

    CC7790
    CC7790-UN-23SEP98

    A - Trip Arm

    B - Trip Dog

    C - ± 1.5 mm (0.06 in.)

    IMPORTANT: Adjust BOTH sides of measuring wheel mounting equally to prevent binding.

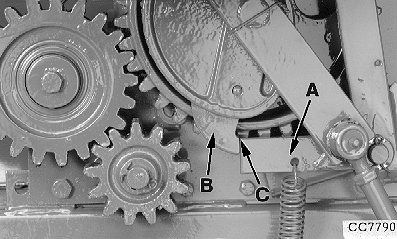

    Move the measuring wheel mounting slightly forward or rearward until top corner of trip arm (A) is flush with top corner of flat surface of trip dog (B) as shown at (C) (maximum tolerance ± 1.5 mm; 0.06 in.).

    Tighten measuring wheel mounting screws securely.


  2. Check Trip Arm Adjustment

    CC7792
    CC7792-UN-23SEP98

    A - Trip Arm

    B - Arm

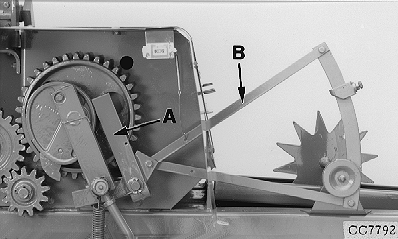

    CAUTION: Arm (A) is spring-loaded; pay extreme attention.

    Pull trip arm (A) back until arm (B) drops.


  3. Stop Adjustment

    CC7847
    CC7847-UN-25SEP98

    Right Side - Narrow Adjustment; Left Side - Wide Adjustment

    A - Stop

    B - Sheave Side

    C - Shim

    D - Shim

    IMPORTANT: Sheave with larger diameter hole must be next to spring and away from shims.

    If stop (A) bounces while falling into place between sheave sides (B), the area is too WIDE. Remove shims (C) as required.

    If stop does not fall all the way in between sheaves, the area is too NARROW. Add shim (D) as needed.


  4. Check Stop Adjustment

    CC7848
    CC7848-UN-05OCT98

    A - Stop

    B - Sheave Side

    C - Shim

    If blade of stop (A) drops between sheave sides (B) snugly without bouncing, the number of shims (C) is correct.
