Adjust Crank Stop

E18610
E18610-UN-03OCT00

E18590
E18590-UN-20SEP88

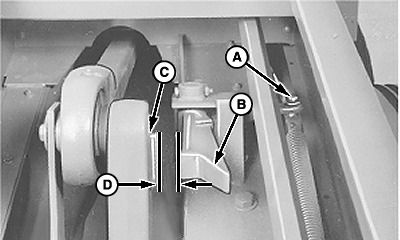

A - Rod Yoke

B - Safety Stop

C - Lug

D - 22—28 mm (0.86—1.10 in.) on 339; 29—35 mm (1.14—1.37 in.) on 349, 359 and 459

E - 70 mm (2.75 in.) Minimum


NOTE: Needle-to-plungerhead timing must be correct before adjusting crank stop (see in this Section).

With the needles in ”home” position, adjust control rod yoke (A) so that clearance (D) between right-hand side of safety stop (B) and lug (C) on plungerhead crank is 22—28 mm (0.86—1.10 in.) on 339 balers and 29—35 mm (1.14—1.37 in.) on 349, 359 and 459 balers.

Trip needles and turn flywheel counterclockwise until needles have risen and are on the down stroke.

When stop starts the return swing to the left, distance (E) between plungerhead crank lug and stop must be greater than 70 mm (2.75 in.).

If distance (E) is less than 70 mm (2.75 in.) and distance (D) is 22—28 mm (0.86—1.10 in.) on a 339 baler or 29—35 mm (1.14—1.37 in.) on a 349, 359 or 459 baler, check needle timing (see in this Section).

Recheck clearance (70 mm; 2.75 in. minimum).
