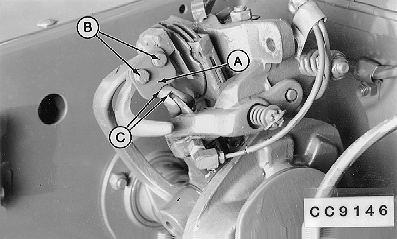

Remove carriage screw from knotter bracket and rotate knotter
assembly to vertical position as shown.
Wiper plate (A) must be centered with billhook heel.
Loosen screws (B) and move arm until wiper plate is approx.
5 mm (0.2 in.) (C) from the billhook tongue groove.
Tighten screws enough to hold wiper plate for next adjustment.
-

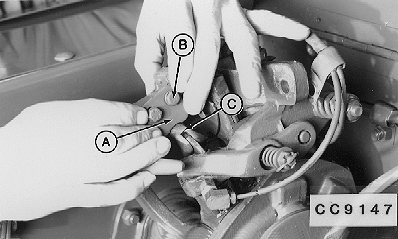

Check Knife Arm Adjustment

CC9147-UN-23SEP98
A - Wiper Plate
B - Screw
C - Billhook
Rotate the knotter assembly down slightly while pulling across
billhook.
To move wiper plate (A) across jaw of billhook (C), a pull of
30—60 N (7—14 lb.) is required.
Tighten screws (B) to 10 ±2 N·m (7.5 ±1.5
lb.-ft.).
-

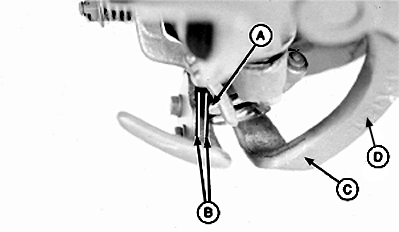

Adjust Billhook to Wiper Plate

E18489-UN-09NOV99
A - Billhook Tongue
B - 1—2.5 mm (0.04—0.1 in.)
C - Arm
D - Model or Bend Area
Billhook tongue (A) must clear the wiper plate by 1—2.5
mm (0.04—0.1 in.) (B) as billhook tongue passes knife (wiper)
arm.
Rotate the billhook through 180° and move tongue by hand
up and down to check the clearance at the closest point between tongue
and plate.
Model or bend arm (C) in area (D) to obtain correct clearance.
-
Adjust Billhook to Knife Arm

E18733-UN-15JUN89
A - Billhook
B - Knife Arm
C - 1.5 mm (0.06 in.) Minimum
As billhook is revolved through its 360° cycle, lower surface
of billhook (A) must clear knife (wiper) arm (B) by a minimum of 1.5
mm (0.06 in.) (C).
-

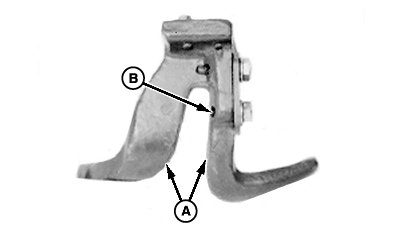

Check Knife (Wiper) Arm

E22712-UN-15SEP00
A - Throat Area
B - Hole
After modelling, check knife (wiper) arm for well rounded and
smooth surfaces at ALL portions that contact twine or knots - particularly
in throat area (A) and at hole (B) - to prevent twine fracture.
-
Check Wiper Plate

CC9147-UN-23SEP98
A - Wiper Plate
B - Screw
C - Billhook
Recheck wiping force by rotating knotter assembly down slightly
while pulling across billhook (C).
To move wiper plate (A) across jaw of billhook (C), a pull of
30—60 N (7—14 lb.) is required.
Check that screws (B) are tightened to 10 ±2 N·m
(7.5 ±1.5 lb.-ft.).
