Replace Knife and Wiper Plate

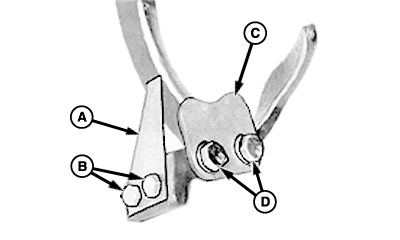

E18027-UN-18SEP00

A - Knife

B - Mounting Screws

C - Wiper Plate

D - Mounting Screws

CAUTION: Use only metric tools to replace knife or wiper plate. Other tools may not fit properly. They may slip and cause injury.

Remove knife (A) and replace when it becomes dull.

To replace knife, remove two mounting screws (B) and the old knife. Replace with new knife. Tighten to 6 ±1 N·m (4.4 ±0.7 lb.-ft.).

To replace wiper plate (C), remove mounting screws (D), washers, and wiper plate. Replace with new wiper plate (see in this Section).
