Remove Knotter Assembly

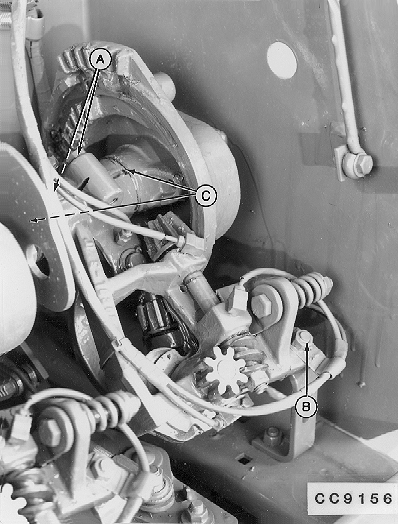

CC9156-UN-23SEP98

A - Mounting Screws

B - Screw

C - Washers

Remove two mounting screws (A) and screw (B).

Disconnect multi-luber lines, if equipped.

NOTE: Check number of washers (C) for reinstallation.

Remove knotter assembly.

For reinstallation, reverse removal procedure taking care to join the correct half pairs of each knotter frame. Tighten mounting screws (A) to 40 N·m (30 lb.-ft.).
