Adjust Needle Link (Wire Baler)

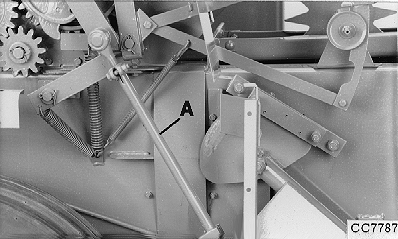

CC7787-UN-23SEP98
A - Needle Lift Link
Needle lift link (A) controls the height of the needles in relation to wire and wire pulleys as well as bale case bottom.Adjust needle lift link:
CC2837-UN-06OCT98

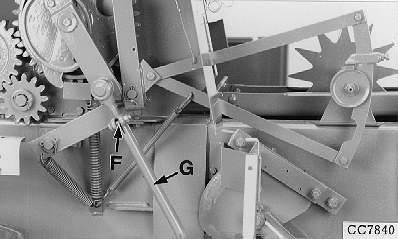

CC7840-UN-23SEP98
A - Center Wire Pulley
B - Wire
C - Rear Wire Pulley
D - 6.5—16 mm (0.25—0.63 in.)
E - Needle
F - Clamp
G - Needle Lift Link
IMPORTANT: Crank stop, plungerhead and needle timing must be checked after making needle lift link adjustments.
-
When in home position, each needle (E) must be 6.5—16 mm (0.25—0.63 in.) (D) below wire (B) passing under center wire pulley (A) and over rear wire pulley (C).
-
Adjust needle clearance by loosening clamp (F) and disconnecting needle lift link (G) from needle frame. Turn needle lift link as required.
NOTE: After adjusting length of needle lift link (G), position clamp (F) with screw facing outside. Hold ball joint parallel to link bar while tightening clamp.
|
OUCC002,000231A-19-20100317 |
