Adjust Wire Guides

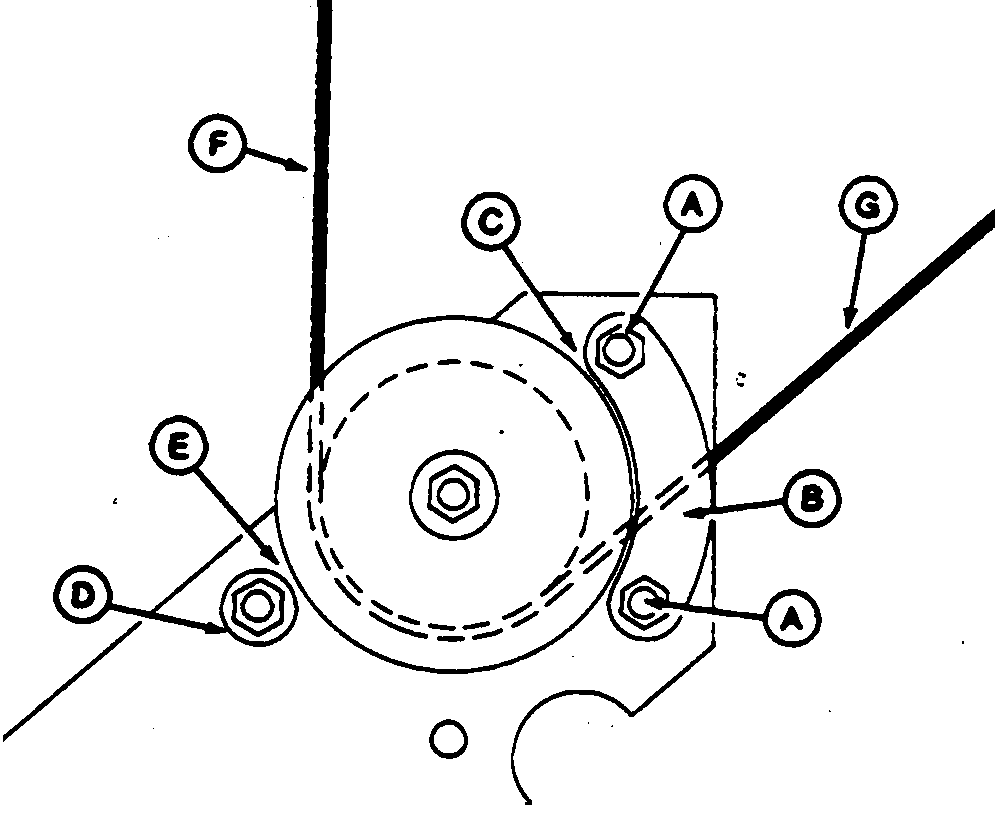

E24760-UN-14SEP88

A - Screws

B - Wire Guides

C - 1.5 ±0.8 mm (0.06 ±0.03 in.)

D - Front Sleeve Guide

E - 0.13—0.8 mm (0.005—0.031 in.)

F - Outgoing Wire

G - Incoming Wire

IMPORTANT: All rollers must turn freely to ensure proper operation of wire twister.

Loosen screws (A) and adjust front pulleys and cast wire guides (B) to clear each other by distance (C).

Loosen screw and adjust front sleeve guide (D) to clear pulleys by distance (E). Each pulley must turn freely.
