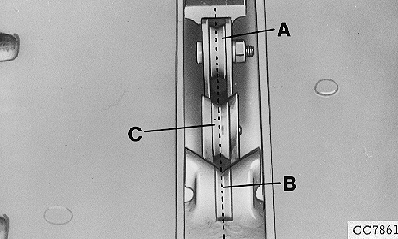

Adjust Center Pulley

CC7861-UN-23SEP98

A - Center Wire Pulley

B - Rear Wire Pulley

C - Needle Pulley

With baler threaded, adjust center pulley (A) to the side, as necessary, to allow needle to pick up the wire as the needles rise.
