Adjust Twister Hooks

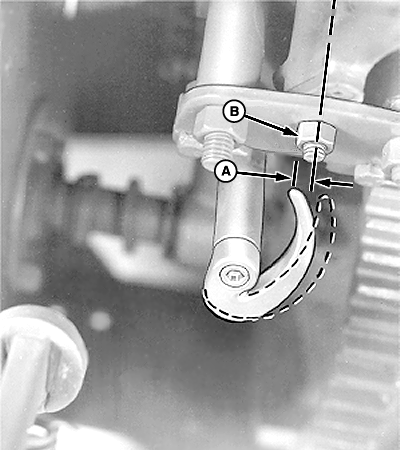

E18622-UN-09OCT00

A - Clearance

B - Gripper Pin

NOTE: Torque socket head screw through twister hook to 34 N·m (25 lb.-ft.).

With needles in home position, twister hook is properly adjusted when the inside of the hook point (pointing rearward) is within 9.5 mm (0.37 in.) maximum clearance (A) to either side of center of gripper pin (B), when finger pressure is applied to delay the twister hook.

Adjust each twister hook by moving the bevel gear to the left and rotating the twister shaft as necessary. Relocate bevel gear on shaft and secure with spring pin.
