Adjust Bevel Gear and Pinion

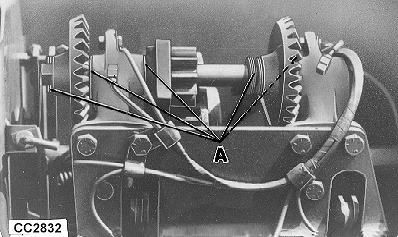

CC2832-UN-23SEP98

A - Washers

IMPORTANT: Check twister hook adjustment after replacing bevel gears.

The bevel gears must be adjusted to mesh properly and have even heel alignment with pinions on twister shafts.

Adjust bevel gears to right or left by adding or removing washers (A) on gear shaft at the locations shown.

Twister pinions may be adjusted higher by adding washers between pinions and twister frames.
