Adjust Slip Clutch (339 and 349)

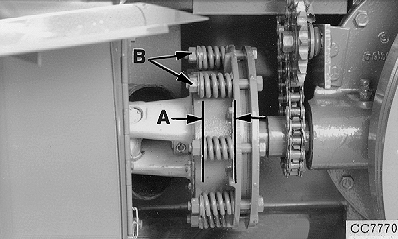

CC7770-UN-23SEP98

A - Spring Dimension

B - Spring Adjusting Nuts

1. Adjust Spring Length

   Spring dimension (A) (coil to coil) must be 35.5—37.5 mm (1.4—1.45 in.) on 339 balers and 34.5—36.0 mm (1.35—1.4 in.) on 349 balers.

   IMPORTANT: Adjust all springs to the same length.

   Tighten or loosen spring adjusting nuts (B) until the correct spring dimension is obtained.

2. Secure Plungerhead


   CC7763-UN-23SEP98

   A - Wood Block

   Prevent movement of plungerhead by placing a wood block (A) as shown.

---




3. Check Slip Clutch Torque


   CC7864-UN-05OCT98

   A - Spring Balance

   B - Lever

   C - 90° Angle

   IMPORTANT: Check slip clutch to be sure linings are not bonded to metal plates.

   Check clutch slippage using spring balance (A) and 3 m (10 ft.) lever (B) attached to power shaft. Exert force at an angle of 90° (C).

   For proper force on lever for clutch slippage, refer to the following specifications:

   339 Baler:

   • 180—230 N (40—51 lb.)
   • 540—690 N·m (390—500 lb.-ft.)



   349 Baler:

   • 220—270 N (49—60 lb.)
   • 660—810 N·m (477—585 lb.-ft.)



---

IMPORTANT: Excessive slippage will damage the slip clutch. A slip clutch adjusted too tight will not give any protection to the power train.
