Adjust Slip Clutch (359 and 459)

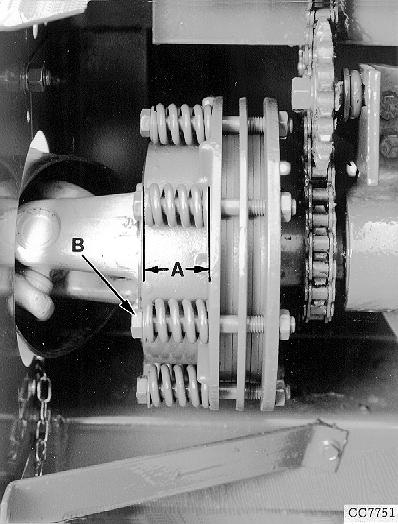

CC7751-UN-23SEP98

459 Baler Shown

A - Spring Dimension

B - Spring Adjusting Nuts

1. Adjust Spring Length

   Spring dimension (A) (coil to coil) must be 34—35 mm (1.33—1.37 in.) on 359 balers and 43—43.5 mm (1.69—1.71 in.) on 459 balers.

   IMPORTANT: Adjust all springs to the same length.

   Tighten or loosen spring adjusting nuts (B) until the correct spring dimension is obtained.

2. Secure Plungerhead

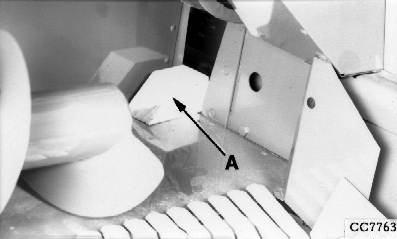

   CC7763-UN-23SEP98

   A - Wood Block

   Prevent movement of plungerhead by placing a wood block (A) as shown.

---




3. Check Clutch Slip Torque

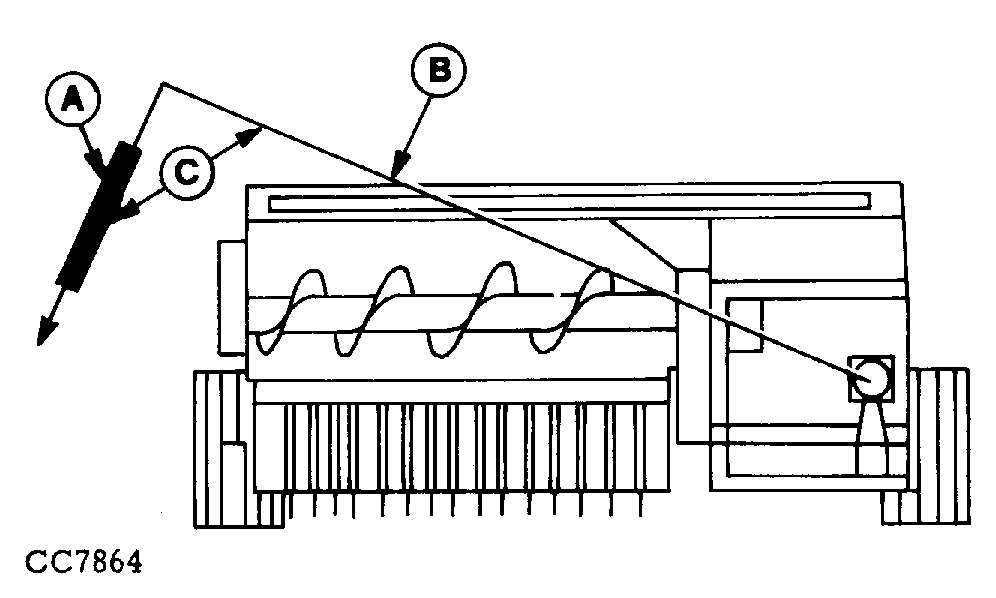

   CC7864-UN-05OCT98

   A - Spring Balance

   B - Lever

   C - 90° Angle

   IMPORTANT: Check slip clutch to be sure linings are not bonded to metal plates.

   Check clutch slippage using spring balance (A) and 3 m (10 ft) lever (B) attached to power shaft. Exert force at an angle of 90° (C).

   For proper force on lever for clutch slippage, refer to the following specifications:

   359 Baler:

   • 240—290 N (53—65 lb.)
   • 720—870 N·m (520—629 lb.-ft.)



   459 Baler:

   • 315—360 N (70—80 lb.)
   • 945—1080 N·m (683—781 lb.-ft.)



---

IMPORTANT: Excessive slippage will damage the slip clutch. A slip clutch adjusted too tight will not give any protection to the power train.
