Adjust Pickup Float

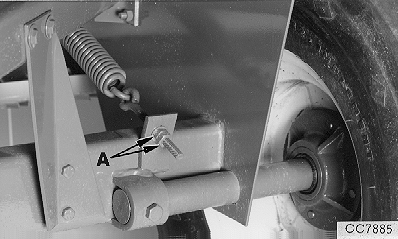

CC7885-UN-23SEP98

A - Nut

Under normal operating conditions, the float spring must be absolutely tight.

Tighten nuts (A) as far as possible.

NOTE: If pickup bounces over hay, loosen float spring slightly.
