Adjust Pickup V-Belt

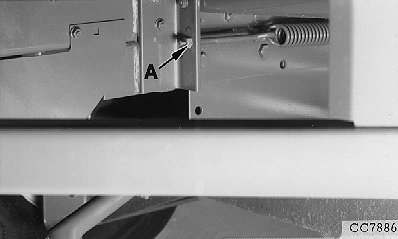

CC7886-UN-23SEP98

339 Baler

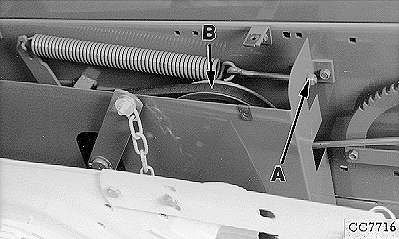

CC7716-UN-23SEP98

349, 359 and 459 Baler

A - Nut

B - V-Belt

IMPORTANT: Pickup V-belt tension affects pickup float.

NOTE: If belt slippage occurs, adjust nuts (A).

Place pickup in normal operating position.

Adjust tension of V-belt (B) by tightening or loosening adjusting nuts (A) on tension spring until slippage is eliminated when operating under normal conditions.
