Adjust Auger Drive Belt

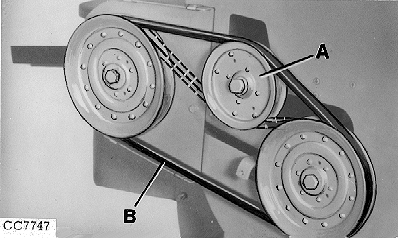

CC7747-UN-23SEP98

339 and 349 Baler

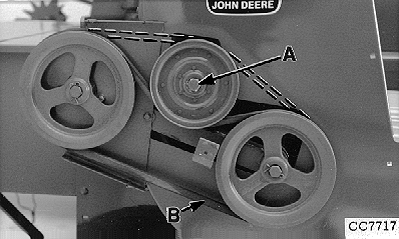

CC7717-UN-23SEP98

359 and 459 Baler

A - Idler

B - Belt

Loosen idler (A) and adjust until belt (B) will deflect 16—29 mm (0.62—1.14 in.) when 88 N (20 lb.) pressure is applied at center of belt opposite idler.

Tighten idler. Install shield.

NOTE: To obtain proper belt tension, the belt can be placed over or under the idler pulley.
