Adjust Main Drive Chain

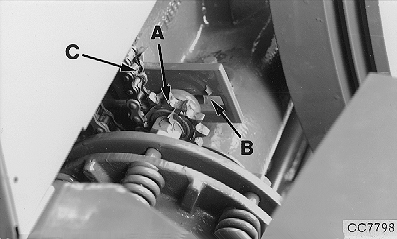

CC7798-UN-23SEP98

339 and 349 Baler

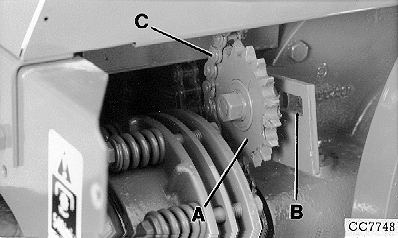

CC7748-UN-23SEP98

359 and 459 Baler

A - Idler

B - Slot

C - Chain

Loosen idler (A) and shift it in slot (B) until chain (C) will deflect 5—6 mm (0.2—0.23 in.) when a pressure of 24.5 N (5.5 lb.) is applied.

Tighten idler.
