Adjust Feeder Finger Chain

The feeder finger chain transmits power to the feeder fingers. This operates the hydraulic pump (optional) driven from the opposite side of the feeder fingers. If any of these parts is removed for servicing, check all timing operations before operating baler.

1. 339 and 349 Baler

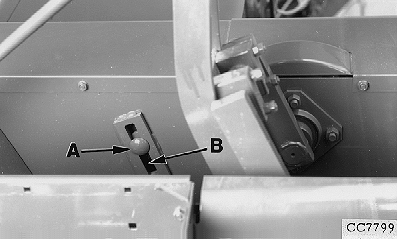

   CC7799-UN-23SEP98

   339 and 349 Baler

   A - Screw

   B - Slot

   Loosen idler screw (A) and shift in slot (B) until chain deflects 7—8 mm (0.27—0.31 in.) when applying a pressure of 24.5 N (5.5 lb.).

   Tighten idler screw. Recheck adjustment.

---




2. 359 and 459 Baler

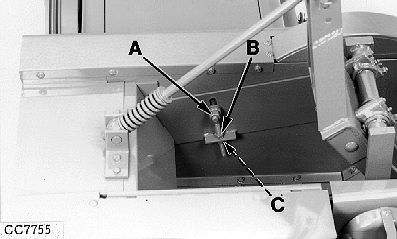

   CC7755-UN-23SEP98

   359 and 459 Baler

   A - Nut

   B - Upper Adjusting Nut

   C - Lower Adjusting Nut

   Loosen nut (A). Loosen upper adjusting nut (B) and tighten lower adjusting nut (C) to increase chain tension. Tension is correct when 13 mm (0.51 in.) deflection can be obtained by applying thumb pressure to center of chain.

   Tighten nuts securely. Recheck adjustment.

---
