Repair Broken Oil Lines

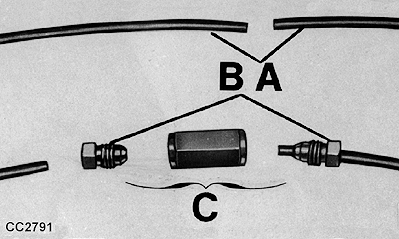

CC2791-UN-23SEP98

A - Oil Line

B - Compression Nut

C - Union

Whenever an oil line is damaged or broken, the plunger action will speed up as it passes the outlet port having a broken or punctured oil line.

Determine the location of the break-in oil line (A).

Cut broken line ends squarely and insert them into compression nuts (B) and union (C) as shown.

Tighten nuts firmly.

NOTE: Compression nuts (B) can be used only once.
