Adjust Right-Hand Wheel Lock Device

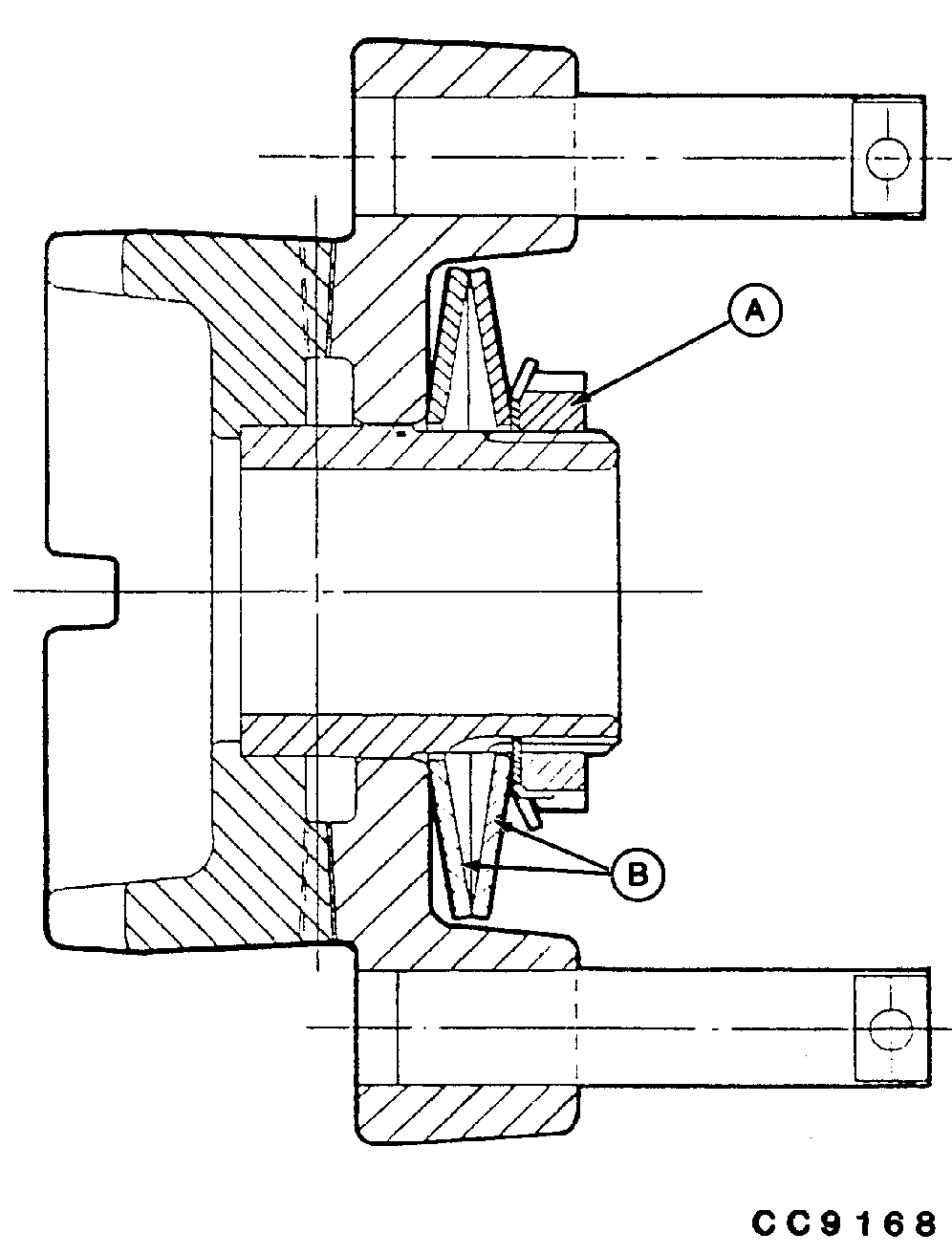

CC9168-UN-25SEP98

A - Nut

B - Spring Washers

If too much slippage occurs when operating the device, proceed as follows:

Loosen nut (A) until spring washers (B) are no longer in contact.

Tighten nut (A) so that spring washers (B) are just in contact, then tighten a further 1/4 turn.
