Combi Frame Pallet Fork and Bale Spike

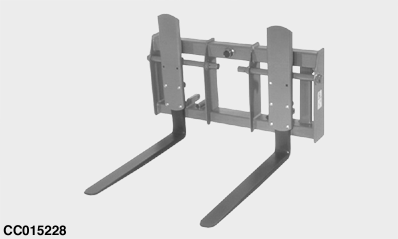

CC015228-UN-16APR99

Combi Frame Pallet Fork

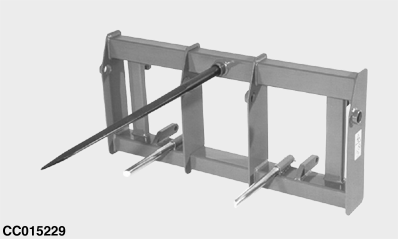

CC015229-UN-16APR99

Combi Frame Bale Spike

It is possible to have a pallet fork or a bale spike on the same frame with the combi frame.

Two conversion kits allow switching from pallet fork to bale spike or from bale spike to pallet fork.

1. Combi Frame Pallet Fork

   Use to move pallets, bulk bins, crates and boxes.

   Maximum pallet fork capacity is 1600 kg (3527 lb) and may be limited by loader capacity.

2. Combi Frame Bale Fork

   Do not handle bales that exceed bale weight of 680 kg (1500 lb).

   Slim profile upper tine is made of high-strength steel so it does not require a gusset that could reduce penetration. Two high-strength lower tines prevent the bale rotating.
