H380 Loader: Approved MFWD Tractors, Rear Ballast and Approved Front Tires

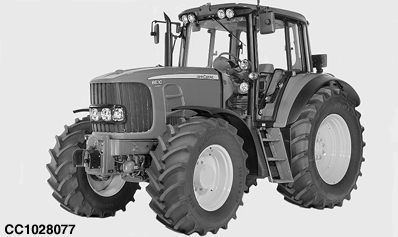

CC1028077-UN-11MAY06

CAUTION: To help prevent personal injury or death caused by tractor rollover, be sure tractor is equipped with rollover protective structure (ROPS) and approved seat belt. Ensure stability of tractor and loader by adding the recommended amount of ballast to the rear hitch of tractor.

IMPORTANT: To prevent tire failure, use only tires with load index equal or greater than those shown in following tables.

NOTE: Compatibility shown in following tables is given for Premium, non-Premium, SE and non-SE tractors.

See your tractor Operator's Manual to find allowed tire sizes.

Set tire pressure to the maximum work pressure for a maximum speed of 10 km/h (6.2 mph).

See your tractor Operator's Manual, tire manufacturer's documentation or your John Deere dealer to know tire specifications.

Tractor		H380 Loader MSL
Series	Models	Hitch Ballast	Tire Load Index1
6RE	6210RE	900 kg (2000 lb.)	140
6R	6170R	1150 kg (2550 lb.)	139
	6190R	900 kg (2000 lb.)	140
	6210R	900 kg (2000 lb.)	140
6M	6170M	900 kg (2000 lb.)	140
7030	7430	1800 kg (4000 lb.)	138
	7530	1800 kg (4000 lb.)	138
6030	6930	1500 kg (3300 lb.)	137
6020	6920	1500 kg (3300 lb.)	137
6010	6910	1500 kg (3300 lb.)	137
6000	6900	1500 kg (3300 lb.)	137
