Attachment Level Indicator (MSL and NSL Loaders)

NOTE:

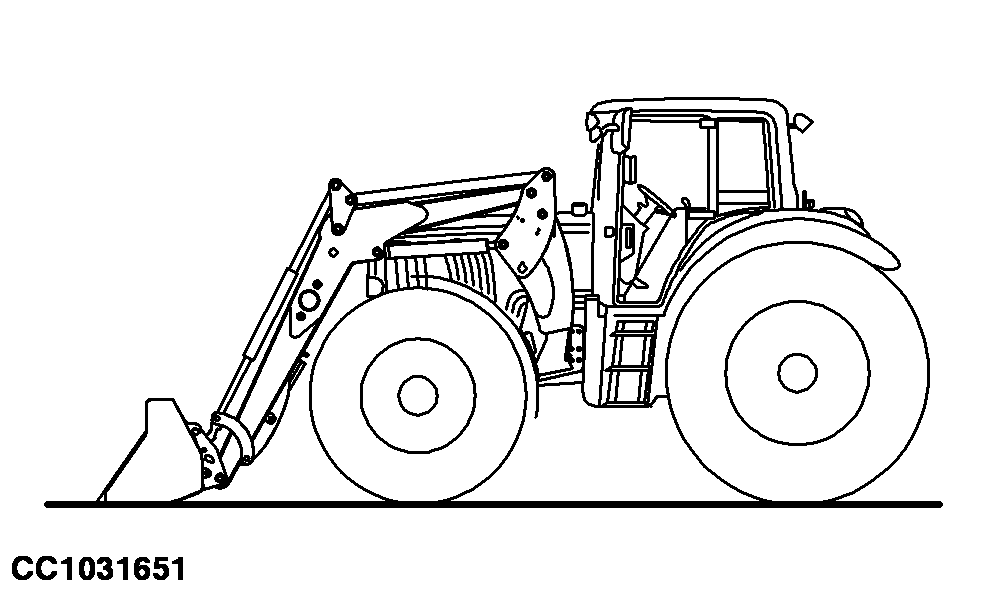

CC1031651-UN-14SEP09

W21801-UN-02SEP11

W21802-UN-02SEP11

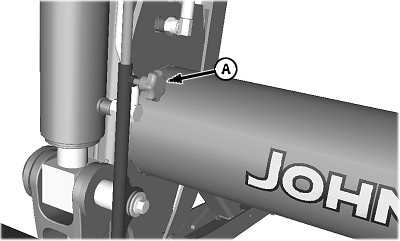

A - Knob

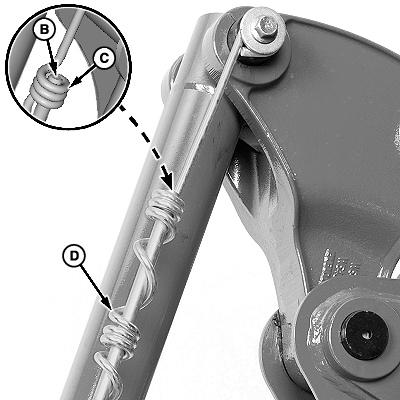

B - Rod

C - Coil Cluster, First

D - Coil Cluster, Second

Position bucket or attachment level with ground. Loosen knob (A) and adjust rod (B) until even with first (C) or second (D) coil cluster. Tighten knob.
