Attachment Level Indicator (Hydraulic Self-Leveling Loader)

NOTE:

CC1031651
CC1031651-UN-14SEP09

W21849
W21849-UN-15SEP11

W21850
W21850-UN-15SEP11

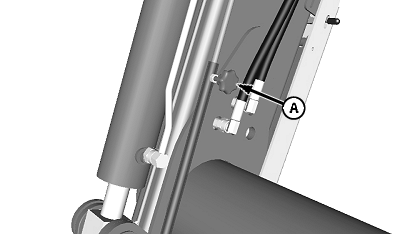

A - Knob

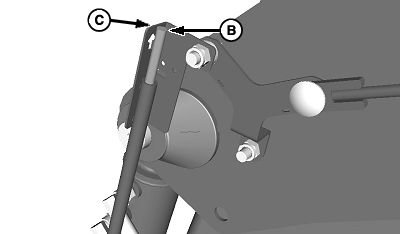

B - Rod

C - Bracket

Indicator position changes with different attachments.

Position bucket or attachment level with ground. Loosen knob (A) and adjust rod (B) until even with bracket (C). Tighten knob.

CC03745,00010BE-19-20130801
