Adjust MEMOSYSTEM Sensor

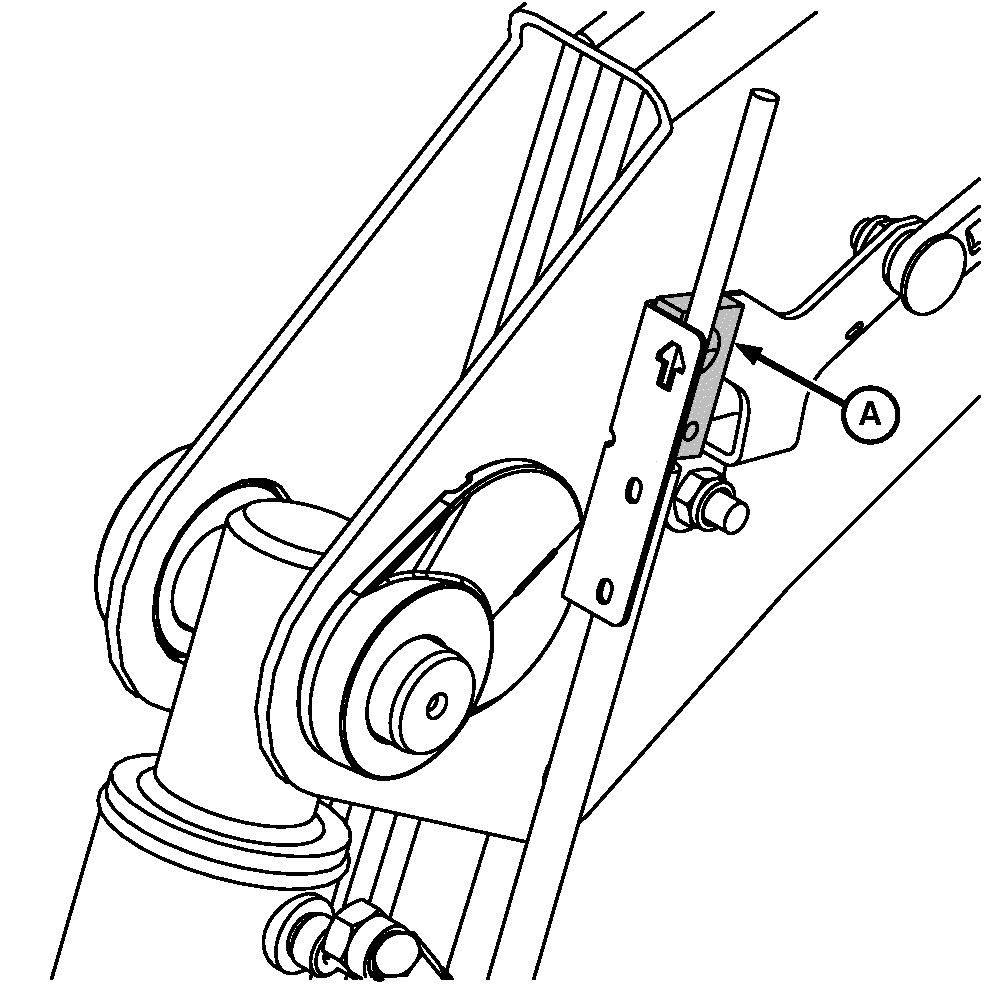

W21853-UN-16SEP11

A - Sensor

The MEMOSYSTEM sensor (A) is located on the top bracket of attachment level indicator.

Position bucket or attachment in desired position. Adjust the top of attachment level indicator rod even with sensor. See in Operate Loader section.
