Hydraulic Connections: Multicoupler for 3rd Function and Individual Couplers for 4th Function

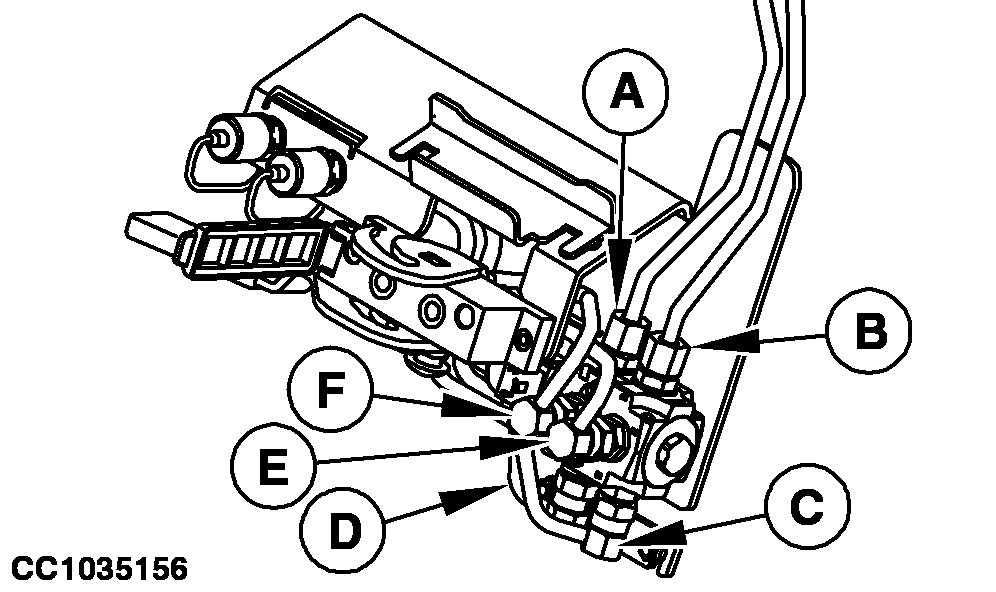

CC1035156-UN-04AUG11

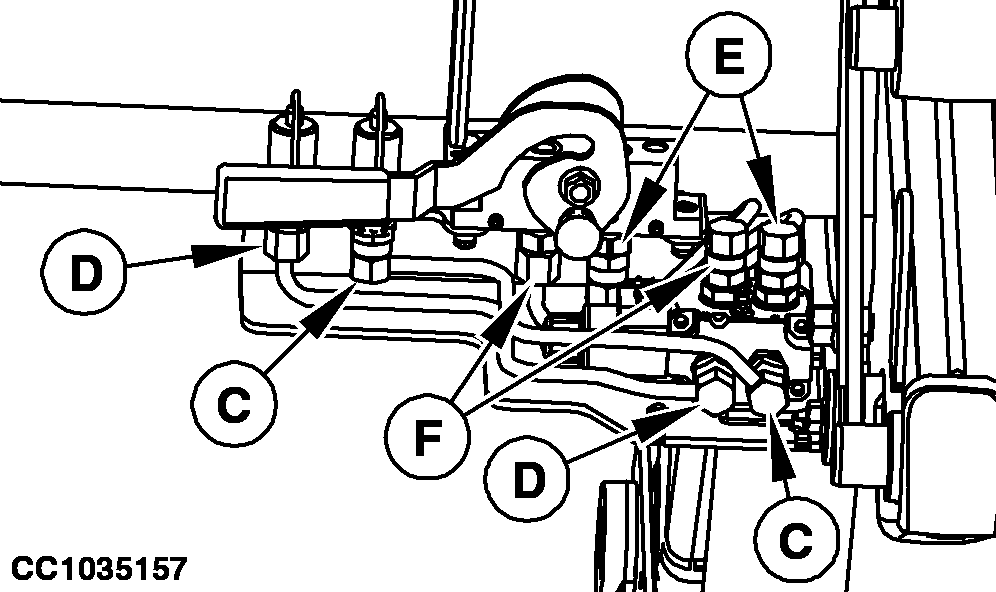

CC1035157-UN-04AUG11

Key	Color	Hydraulic Function
A	Green	Attachment Cylinder—Retract
B	Orange	Attachment Cylinder—Extend
C	Orange	3rd-Function Attachment Cylinder—Extend
D	Green	3rd-Function Attachment Cylinder—Retract
E	Orange	4th-Function Attachment Cylinder—Extend
F	Green	4th-Function Attachment Cylinder—Retract
