Identify Hose Connections—2-Function Loader with Multicoupler
NOTE:

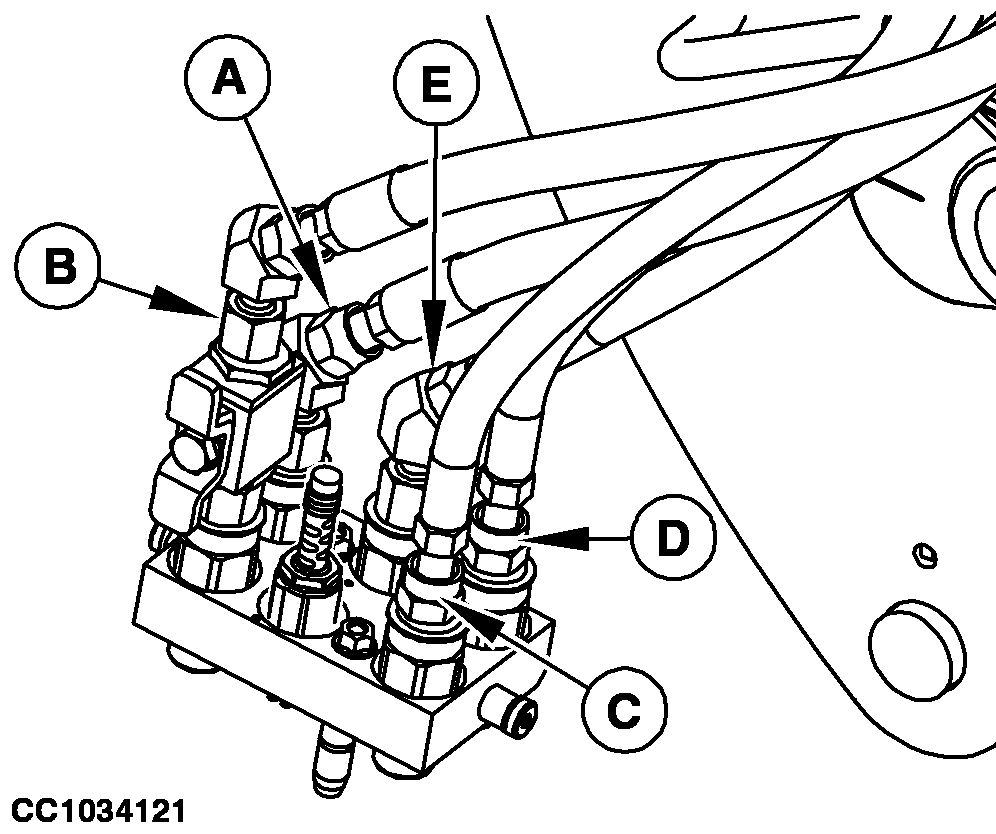

CC1034121-UN-02MAY11
Multicoupler—Loader Side
CC1034132-UN-02MAY11
Multicoupler—Tractor Side
Connection (E) is only for hydraulic self-leveling (HSL) loaders.
|
Key |
Color |
Hydraulic Function |
|---|---|---|
|
A |
Red |
Boom Cylinder—Lower |
|
B |
Blue |
Boom Cylinder—Raise |
|
C |
Yellow |
Bucket Cylinder—Dump |
|
D |
Black |
Bucket Cylinder—Roll Back |
|
E |
Gray |
Drain Hose (only for hydraulic self-leveling HSL Loader) |
|
JP32224,000066D-19-20120125 |
