Identify Hose Connections—3-Function Loader with Multicoupler

NOTE:

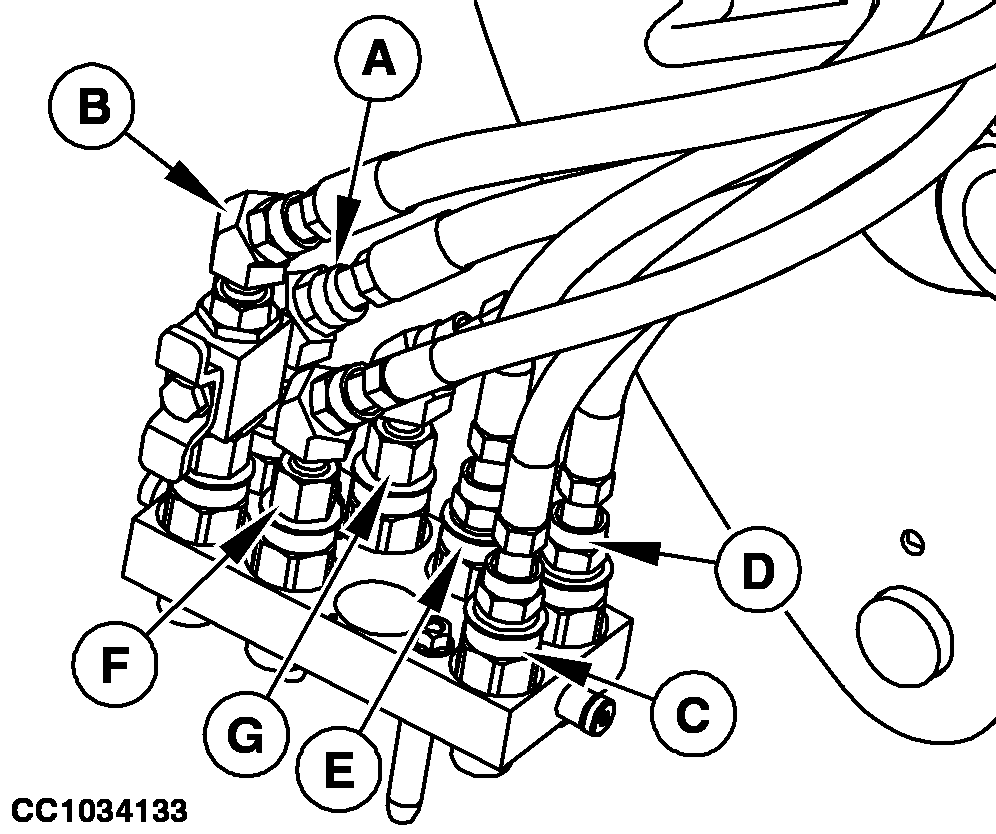

CC1034133-UN-02MAY11

Multicoupler—Loader Side

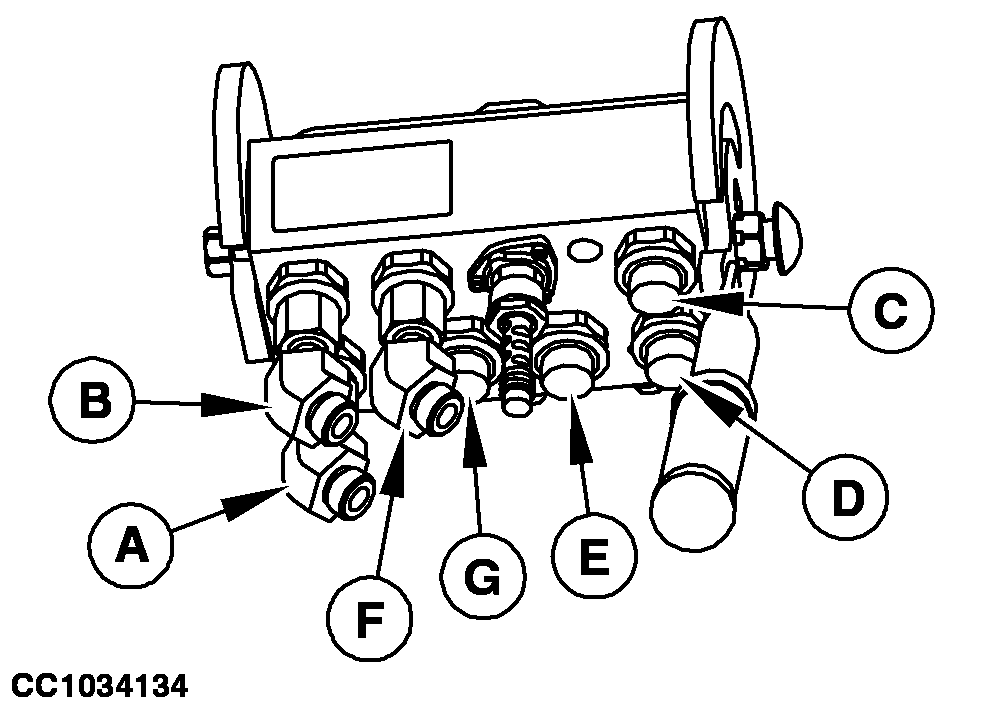

CC1034134-UN-24JUN11

Multicoupler—Tractor Side

Key	Color	Hydraulic Function
A	Red	Boom Cylinder—Lower
B	Blue	Boom Cylinder—Raise
C	Yellow	Bucket Cylinder—Dump
D	Black	Bucket Cylinder—Roll Back
E	Orange	Attachment Cylinder—Extend
F	Green	Attachment Cylinder—Retract
G	Gray	Drain Hose (only for hydraulic self-leveling HSL Loader)
