Access Front of Tractor (if Equipped with Foldable Hood Guard)

1. CAUTION:

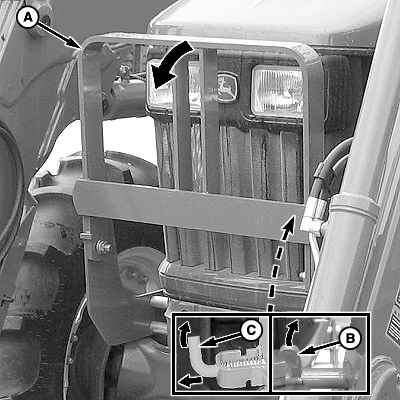

   W22015-UN-02DEC11

   A - Hood Guard

   B - Latch Pin, Rotating-Type

   C - Latch Pin, Pull-Type

   If unable to access front of tractor with loader attached, either remove loader or raise loader. See Service Loader and/or Tractor Safely in this section.

   Start tractor engine and raise boom.

---




2. Roll bucket until front edge is facing ground.

3. Lower boom to ground and shut off tractor engine.

4. CAUTION: Weight of hood guard (A) can be high. Use caution when handling hood guard as it can drop suddenly when lowered.

   NOTE: Depending on tractor, hood guard will have either a rotating-type (B) or pull-type (C) latch pin.

   Rotate latch pin (B) or pull out and rotate latch pin (C) and slowly rotate guard (A) forward to access engine compartment.
