Operate MEMOSYSTEM (if equipped)

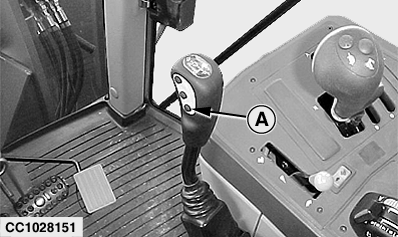

CC1028151-UN-16MAY06

Standard Multi-Function Lever

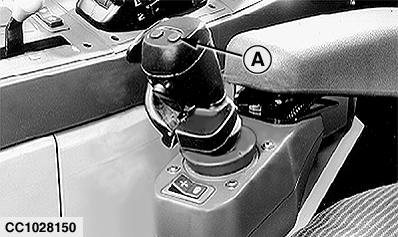

CC1028150-UN-16MAY06

Armrest-Integrated Multi-Function Lever

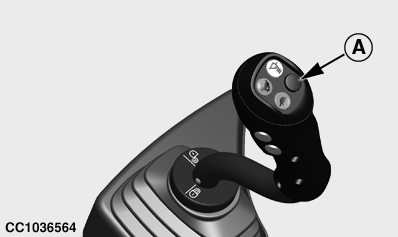

CC1036564-UN-01FEB12

Multi-Function Lever with Integrated Loader Suspension Control

A - MEMOSYSTEM Switch

The MEMOSYSTEM allows an automatic return to levelled position of the implement.

NOTE: Before operating MEMOSYSTEM, it is necessary to check:

• Attachment level indicator position. See Attachment Level Indicator in Operate Loader section.
• MEMOSYSTEM sensor. See Adjust MEMOSYSTEM Sensor in Service section.

To operate MEMOSYSTEM proceed as follows:

Continuously press MEMOSYSTEM switch (A) and push multi-function lever in forward position.
