Operate 3rd and 4th Functions with 2-Function Independent Control Valve and Diverter

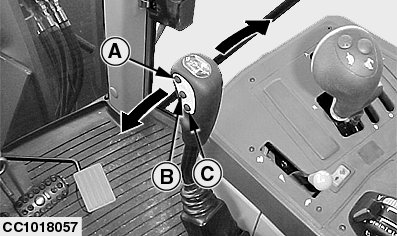

CC1018057-UN-18JUL00

Standard Multi-Function Lever

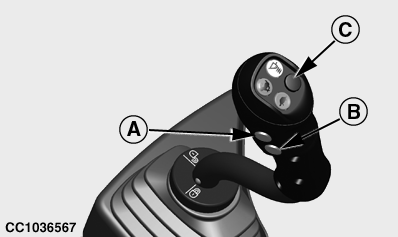

CC1036567-UN-01FEB12

Multi-Function Lever with Integrated Loader Suspension Control

A - 3rd Function

B - 4th Function

C - MEMOSYSTEM Switch

CAUTION: As soon as the switches for 3rd or 4th function are released the control lever goes back to its primary functions: dump to the right side and roll back to the left side.

NOTE: If loader does not respond as expected to control lever movement:

• Check for correct hose connections and electrical connections. See Identify Hose Connections in Service section.
• Check tractor hydraulic oil level. See your tractor Operator's Manual.

NOTE: 4th function needs the front-end implement to be fitted with the required diverter valves.

The multi-function lever is protected by a fuse.

On loader equipped with 3rd and 4th functions operated by diverter valve, select 3rd or 4th function by continuously pressing on button (A) or (B) then push the lever to the right side to open the implement or pull it to the left side to close the implement.
