Operate 3rd and 4th Functions with 3-Function Independent Control Valve

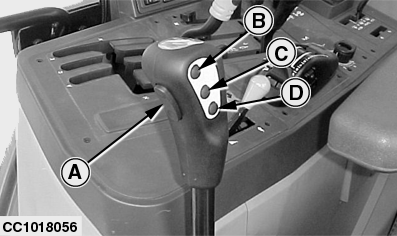

CC1018056-UN-18JUL00

Standard Multi-Function Lever

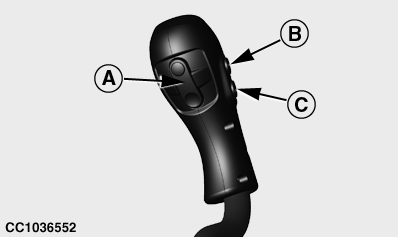

CC1036552-UN-27JAN12

Multi-Function Lever with Integrated Loader Suspension Control

A - Rocker Switch

B - 3rd Function

C - 4th Function

D - MEMOSYSTEM Switch

CAUTION: To avoid unexpected movement, always select the desired function by pressing button (B) or (C) before actuating the rocker switch (A).

NOTE: If loader does not respond as expected to rocker switch movement:

• Check for correct hose connections and electrical connections. See Identify Hose Connections in Service section.
• Check tractor hydraulic oil level. See your tractor operator's manual.

NOTE: 4th function needs the front-end implement to be fitted with the required diverter valves.

The multi-function lever is protected by a fuse.

Operate 3rd function:

To select 3rd function, press and release the button (B), then press on top of rocker switch (A) to open the implement and on bottom of rocker switch (A) to close it.

Operate 4th function:

To select 4th function, press and release the button (C), then press on top of rocker switch (A) to open the implement and on bottom of rocker switch (A) to close it.
