Loader Suspension System

The loader suspension can be deactivated to perform precision tasks.

IMPORTANT: Bucket or attachment must be unloaded and in lowered position before activating or deactivating suspension system.

Tractor with rocker switch control on the console:

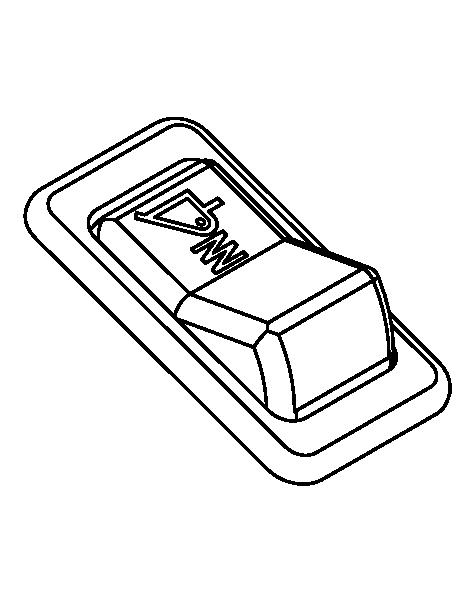

W21872-UN-27SEP11

On Position

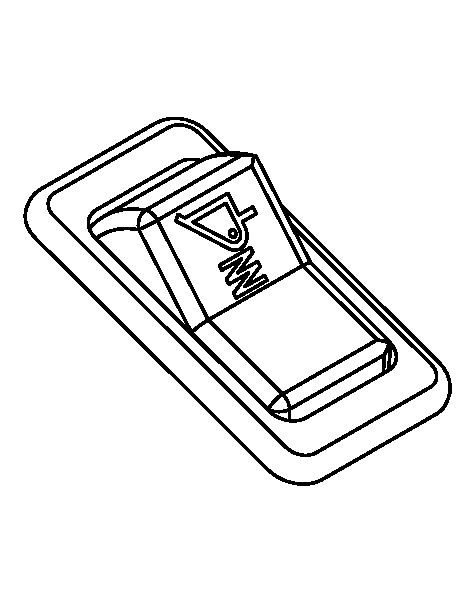

W21873-UN-27SEP11

Off Position

Move rocker switch to ON position to activate loader suspension system.

Move rocker switch to OFF position to deactivate loader suspension system.

Tractor with multi-function lever with integrated loader suspension control:

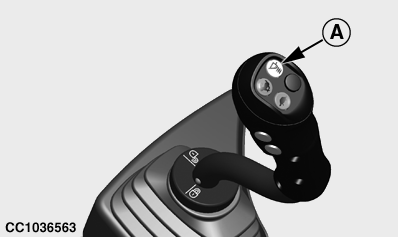

CC1036563-UN-01FEB12

Multi-Function Lever with Integrated Loader Suspension Control

A - Button

NOTE: If button (A) does not respond, see your tractor Operator’s Manual to access programming mode and enable or disable button (A) on the multi-function lever.

Press button (A) to activate or deactivate loader suspension system.

• LED on button (A) is not lighted if loader suspension system is deactivated.
• LED on button (A) is lighted if loader suspension system is activated.
