Operating 3rd and 4th Functions with Armrest-Integrated Multi-Function Lever

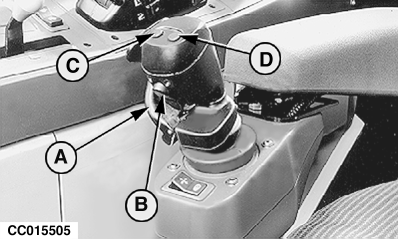

CC015505-UN-16APR99

A - Interlock switch actuator

B - Rocker switch

C - 4th function

D - MEMOSYSTEM switch

NOTE: Interlock switch actuator (A) prevents accidental actuation of the multi-function lever. The lever can be operated only when the actuator (A) is open (the operator's hand must hold it open).

See your tractor operator's manual for more information.

On loaders equipped with 3rd function, press on top of rocker switch (B) to open the implement and on bottom of rocker switch (B) to close it.

On loaders equipped with 4th function, continuously press on button (C) to select 4th function then press on top or bottom of rocker switch (B) to activate the selected function.

As soon as the button (C) is released, the rocker switch activates the 3rd function.

If loader does not respond as expected to rocker switch movement:

• Check for correct hose connections and electrical connections. See "Identifying Hose Connections" in "Service" Section.
• Check tractor hydraulic oil level. See your tractor operator's manual.

NOTE: 4th function need the front-end implement to be fitted with the required diverter valves.
