Gearshift Switches on the Multi-Function Lever (Tractor with PowrQuad™ PLUS, AutoQuad™, and PowrReverser™ Plus Transmission)

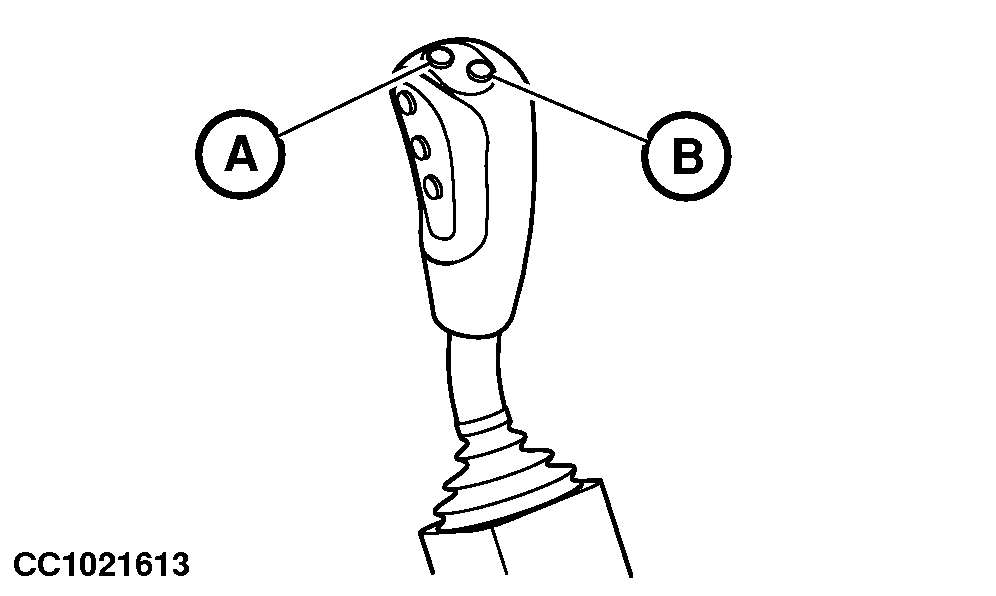

CC1021613-UN-31JUL02

Standard Multi-Function Lever

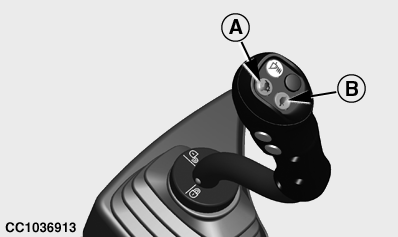

CC1036913-UN-01FEB12

Multi-Function Lever with Integrated Loader Suspension Control

A - Gear Shift Up

B - Gear Shift Down

The gearshift switches allow to change gear in a range without taking the range shift lever.

IMPORTANT: If allowed by local traffic regulations, it is recommended to lock the multi-function lever when driving on public roads.

Press button (A) to shift up gear.

Press button (B) to shift down gear.
