Attach Bucket or Attachment

CAUTION: DO NOT allow bystanders near loader while attaching bucket or attachment. To prevent serious injury, bucket or attachment must be attached only by tractor operator.

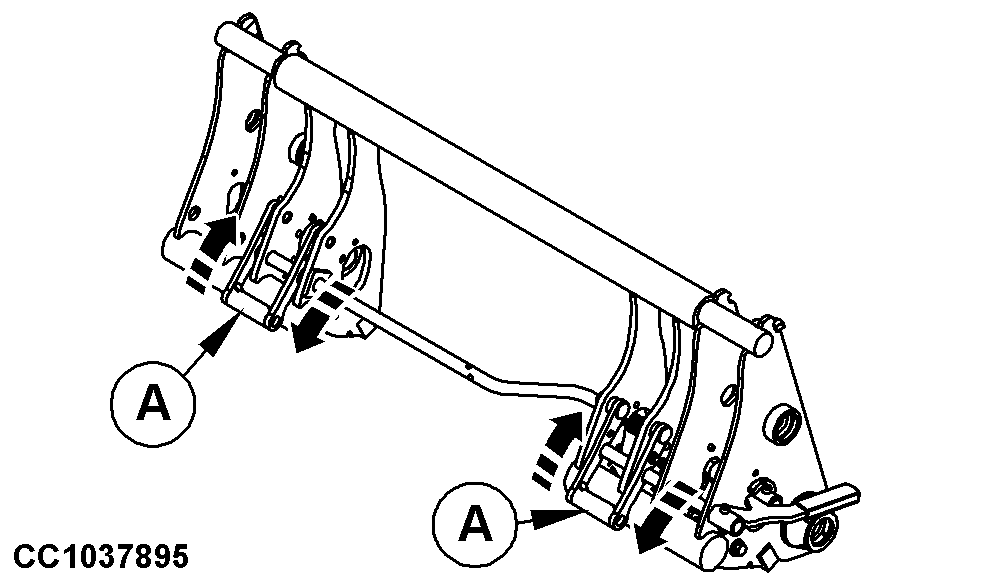

  1. CC1037895
    CC1037895-UN-17JUL12

    Combi ISO/SMS Carrier Shown

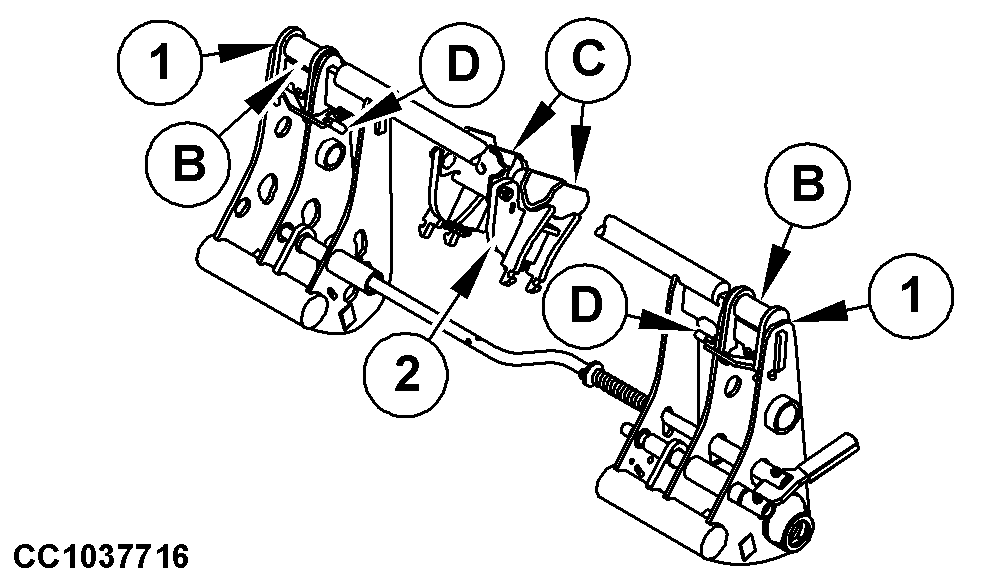

    CC1037716
    CC1037716-UN-17JUL12

    Combi ISO/MX Carrier Shown

    A - Movable Spacer

    B - Adapter for ISO Bucket or Attachment

    C - Adapter for MX Bucket or Attachment

    D - Lever

    1 - Working Position

    2 - Storage Position

    Clean debris from latching mechanism, carrier, and attaching points.


  2. If equipped with Combi ISO/SMS or ISO/MX carrier, prepare carrier as follows.

    1. With Combi ISO/SMS carrier, place both movable spacers (A) in correct position according to the bucket or attachment type:

      • For ISO bucket or attachment, place spacer (A) in low position as shown.
      • For SMS bucket or attachment, place spacer (A) in high position.

    2. With Combi ISO/MX carrier, install relevant adapters (B) or (C) in working position (1) according to the bucket or attachment type:

      • For ISO bucket or attachment, install both adapters (B) in working position (1) as shown.
      • For MX bucket or attachment, pull lever (D) and remove both adapters (B) from working position (1), then install in storage position (2) instead of adapters (C). Install adapters (C) in working position (1).

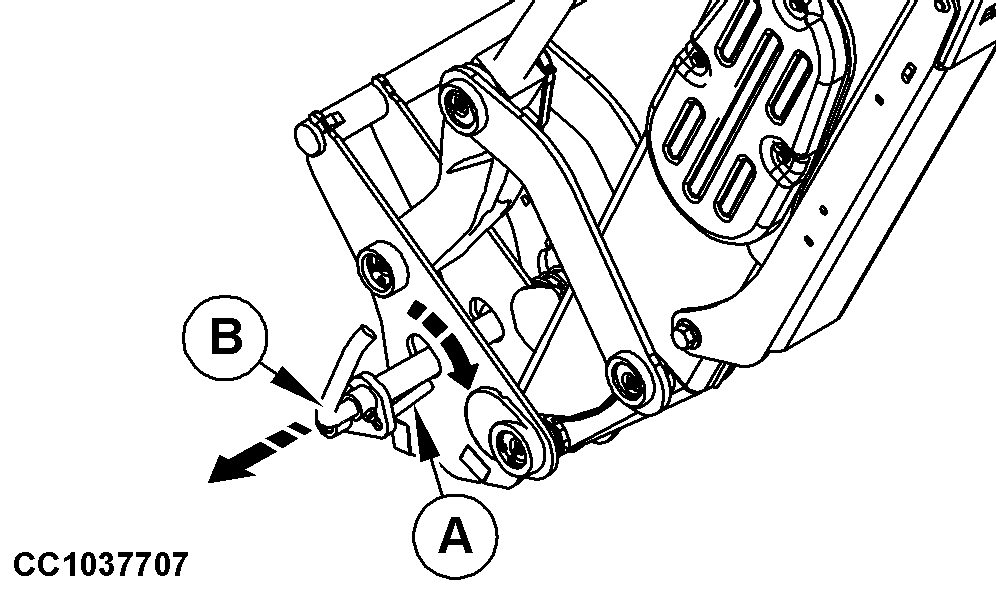

  3. CC1037707
    CC1037707-UN-17JUL12

    Loaders without Hydraulic Implement Unlatching

    A - Pin

    B - Handle

    Place auto-latch device in unlatched position.

    1. Loaders without hydraulic implement unlatching:

      Start tractor engine and extend bucket cylinders to angle carrier forward slightly.

      Place transmission in PARK, shut off engine, and remove key.

      Pull latch handle (B) outward and rotate back until pin (A) rests against carrier frame and is locked in UNLATCHED position.

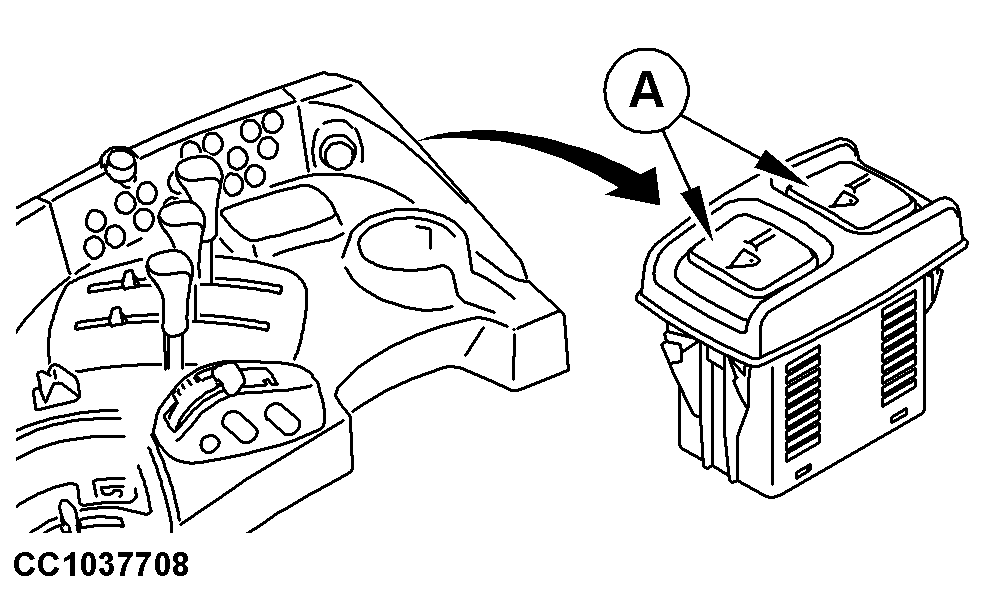

    2. CC1037708
      CC1037708-UN-17JUL12

      Loaders with Hydraulic Implement Unlatching

      A - Unlatching Button

      Loaders with hydraulic implement unlatching:

      Start tractor engine and fully roll back the carrier arms (retract bucket cylinders) to fill accumulator of hydraulic implement unlatching device.

      Extend bucket cylinders to angle carrier forward slightly.

      Simultaneously press both buttons (A). The auto-latch device has moved to unlatched position.

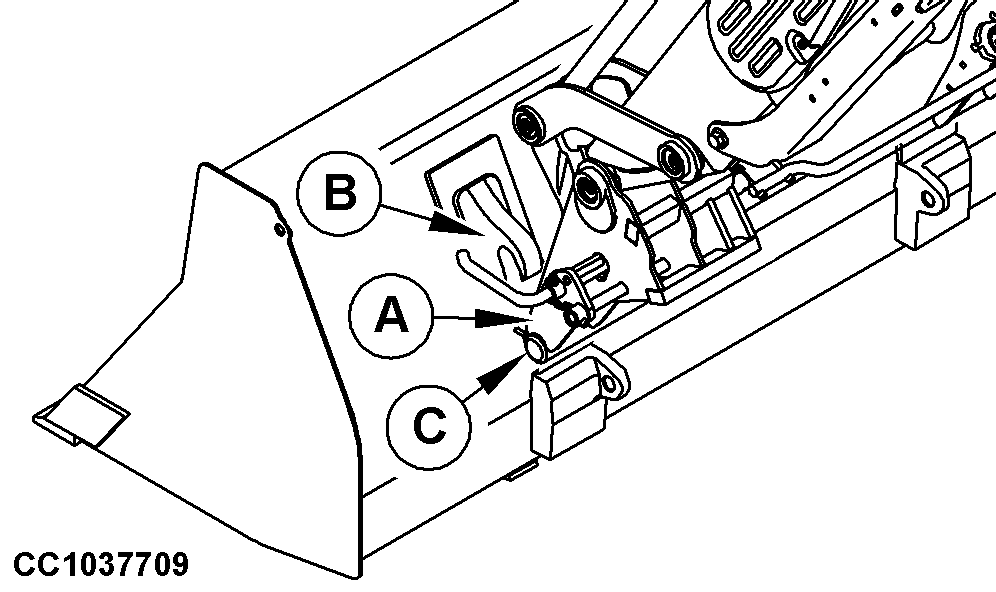

  4. CC1037709
    CC1037709-UN-17JUL12

    A - Arm

    B - Hook

    C - Bar

    Drive forward and center carrier arms (A) under hooks (B) on bucket or attachment.


  5. Raise carrier until bar (C) engages in hooks (B) on both sides of bucket or attachment.

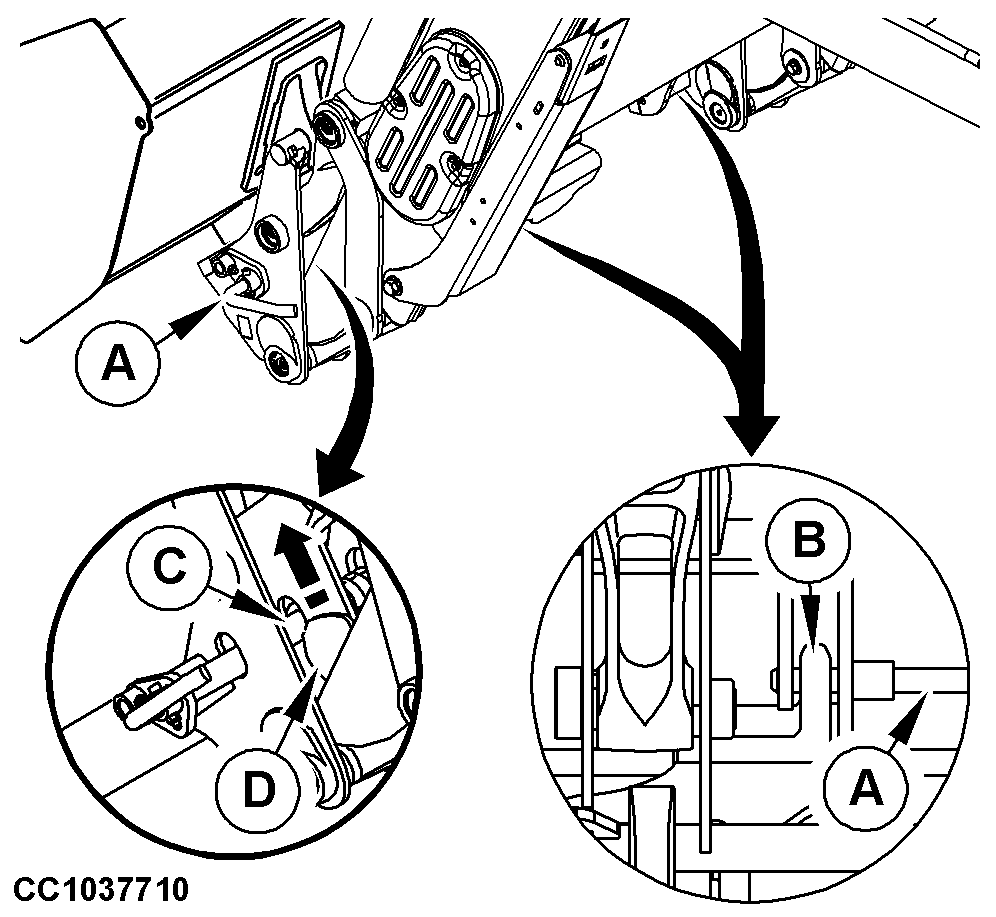

  6. CC1037710
    CC1037710-UN-17JUL12

    A - Pin (1 each Side)

    B - Bracket, Attachment (1 each Side)

    C - Rod

    D - Tab

    Roll back bucket or attachment fully (retract bucket cylinders). Rod (C) contacts tab (D) and releases latch mechanism allowing pins (A) to slide into brackets (B) on bucket or attachment.

    NOTE: Auto-latch device is optimized for operating with front of loader boom just off ground.


  7. CAUTION:

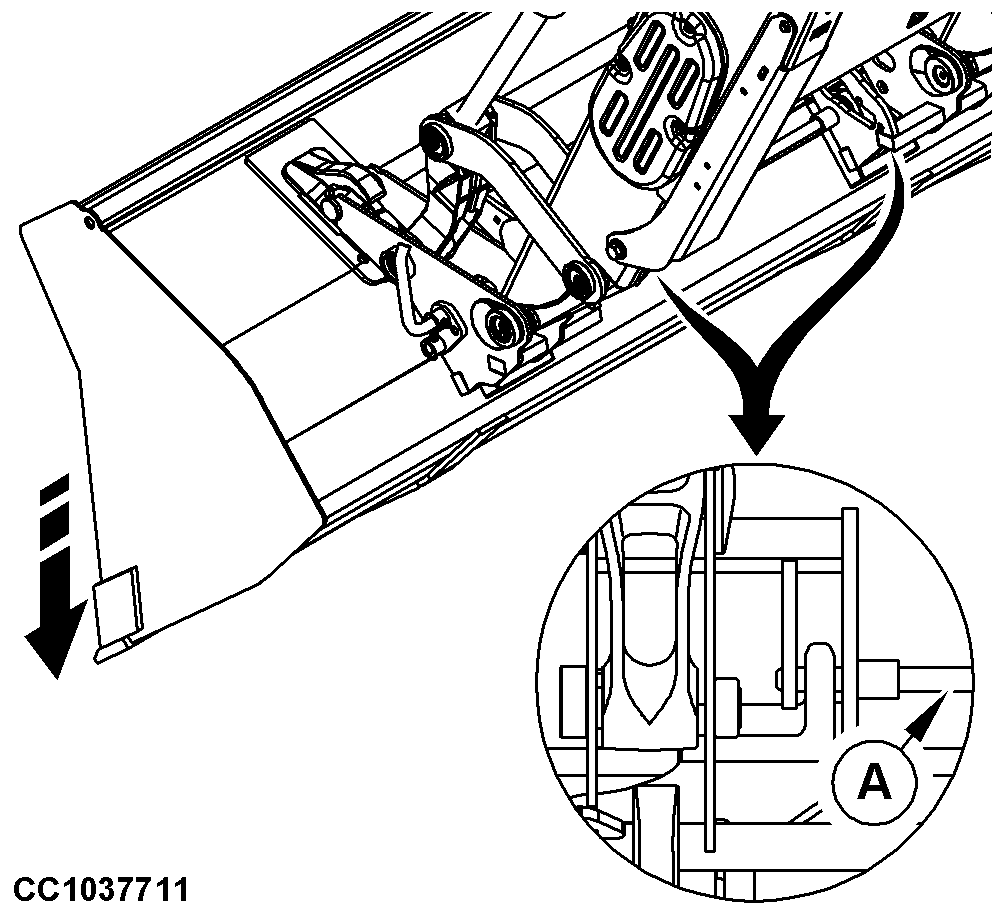

    CC1037711
    CC1037711-UN-17JUL12

    A - Latch Pin (1 each Side)

    DO NOT operate loader without confirming that latch pins (A) are engaged in attachment. Failure to engage pins can allow attachment to detach from loader, resulting in serious injury or death.

    Check pin engagement with bucket or attachment:

    1. Position loader approximately 300 mm (1 ft.) above ground and dump bucket or attachment until front edge contacts ground.

    2. Apply pressure against ground (extend bucket cylinders) to verify that pins (A) are fully engaged in bucket or attachment.


  8. Lower loader to ground, place transmission in PARK, shut off engine, and remove key.

  9. CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before connecting hydraulic or other lines.

    X9811
    X9811-UN-23AUG88

    Relieve pressure in hydraulic system. See Relieve Hydraulic Pressure Safely in Safety section and see your tractor Operator’s Manual for specific procedure.


  10. Lock out loader control levers. See Loader Control Levers in Controls section and see your tractor Operator’s Manual for specific procedures.

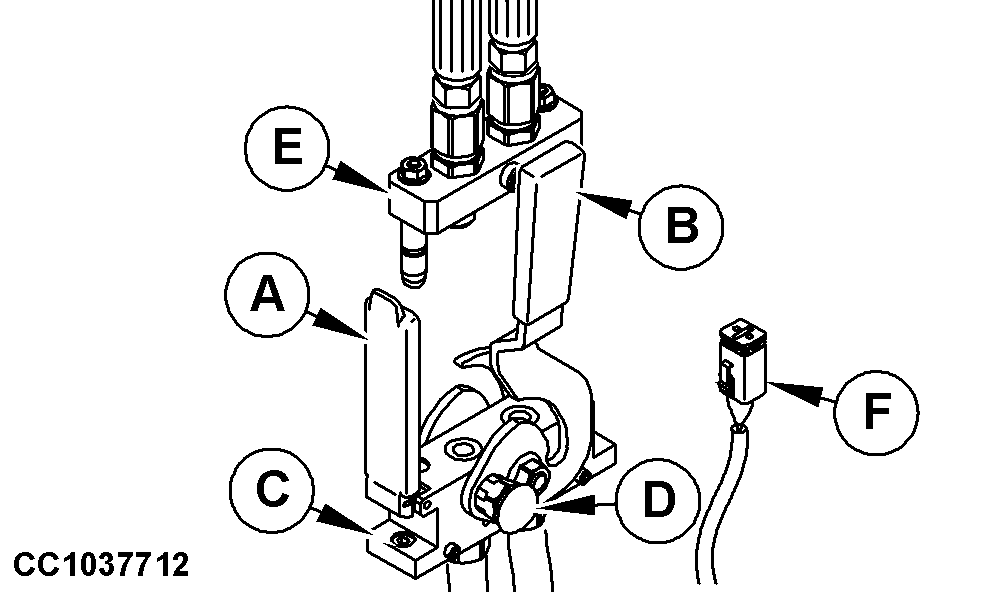

  11. CC1037712
    CC1037712-UN-17JUL12

    Bucket or Attachment Multicoupler

    A - Cover

    B - Lock Cam Lever

    C - Base

    D - Lock Button

    E - Top Case

    F - Harness

    Connect hydraulics and electrics (bucket or attachment with 3rd or 4th functions).

    1. Loader with bucket or attachment multicoupler:

      NOTE: Before each connection, carefully clean the mating surface of base and top case as well as guiding pins.

      Open multicoupler cover (A), push on lock button (D) and simultaneously pull up lock cam lever (B).

      IMPORTANT: Multicoupler halves must align properly or damage to couplers can occur.

      Engage top case (E) on base (C), then pull down lock cam lever (B) until lock button (D) engages, so that top case (E) is connected to base (C).

      Connect electrical harness (F) for additional functions if equipped.


    2. CC1036915
      CC1036915-UN-02FEB12

      Bucket or Attachment Individual Couplers

      A - Plug

      B - Individual Coupler, Male

      C - Individual Coupler, Female

      D - Harness

      Loader with bucket or attachment individual couplers:

      NOTE: Identify connections with color-coded plugs (A).

      • Attachment Cylinder—Rod End (Green)
      • Attachment Cylinder—Head End (Orange)

      Remove plugs (A) from individual couplers.

      Connect male and female individual couplers (B) and (C) on loader.

      Connect electrical harness (D) for additional functions if equipped.


  12. Unlock loader control levers. See Loader Control Levers in Controls section and see your tractor Operator’s Manual.

  13. Check attachment operation.
