Every 10 Hours - Round Bale Elevator

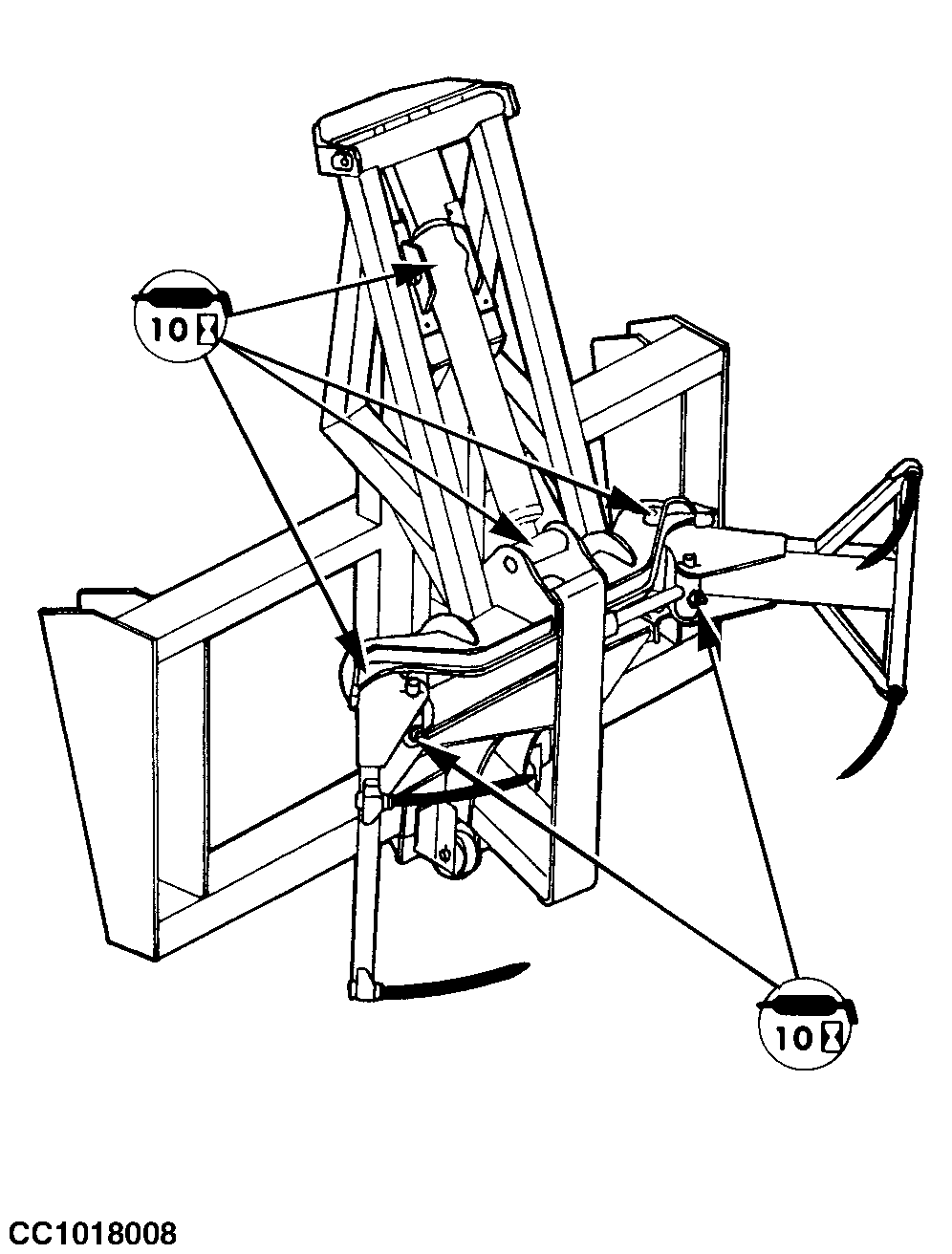

CC1018008-UN-22JUN00

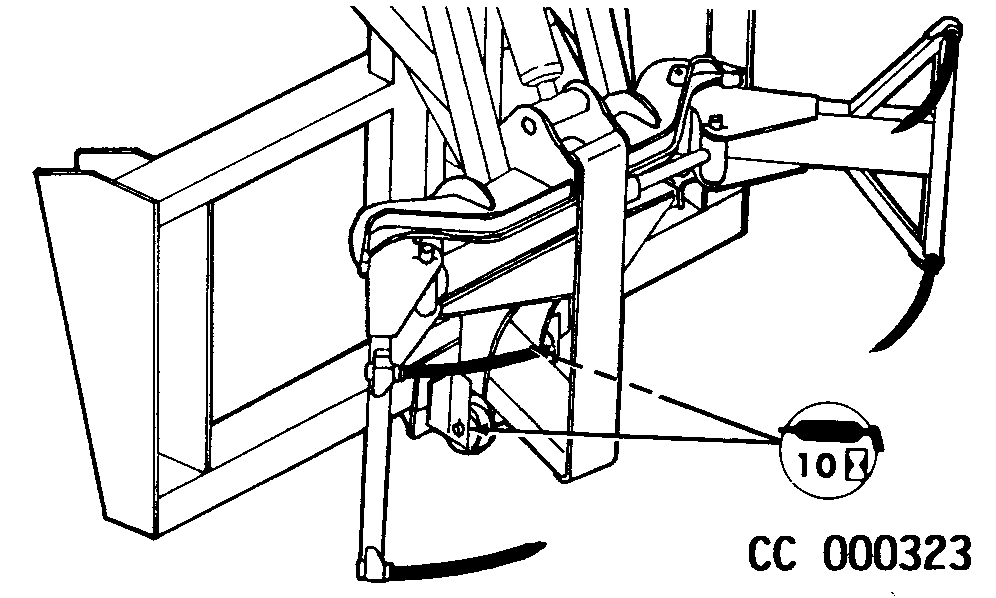

CC000323-UN-29MAR95

Lubricate four fittings on elevator hydraulic cylinders.

Lubricate two fittings on grapple arm pivots.

Apply grease, oil or spray lubricant to roller axles.

Do not lubricate between rollers and rolling rail.
