Store Loader and Attachments

NOTE:

W14000-UN-05OCT88

Store loader in a dry, protected place. If stored outside, cover with a waterproof material.

Retract all hydraulic cylinders, if possible. If not, apply grease to any exposed cylinder rods to prevent rusting.

CAUTION: Detached loader can fall and cause serious injury or death. Securely store loader with bucket attached to prevent falling. Keep playing children and bystanders away from storage area.

W21531-UN-11APR11

W00267-UN-27NOV91

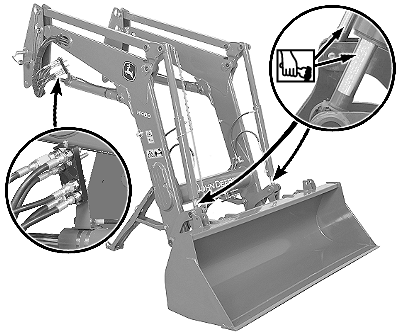

• Park and detach loader in dry and protected place. See in Attach and Detach Loader section.
• Apply grease to any exposed cylinder rods to prevent rusting.
• Store multicoupler on bracket located on right-hand lift cylinder.

CAUTION: To help prevent personal injury from exposed fork tines, always store bale fork with tines pointed down, or against bale, building or other stable object.
