Set Teeth Spacing on Bale Spike with Foldable Teeth

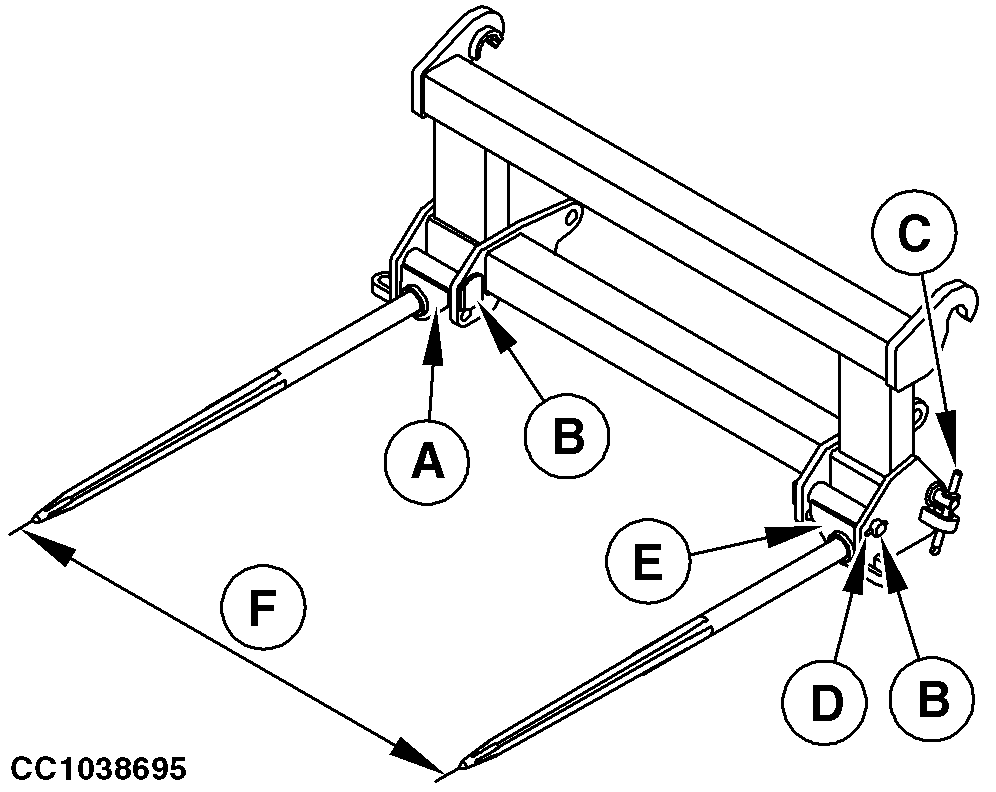

CC1038695-UN-10DEC12

A - Tooth Bracket

B - Pivot Pin

C - Locking Pin

D - Cotter Pin

E - Tooth Bracket

F - Spacing Between Tooth

1. On both sides, remove locking pins (C), cotter pins (D) and pivot pins (B).

2. Remove tooth brackets (A) and (E).

3. Install tooth brackets (A) and (E) in order to obtain desired spacing value between tooth (F):

   • Tooth bracket (A) installed on right side and bracket (E) installed on left side (position shown).

     Item	Measurement	Specification
     Spacing Between Tooth	Distance	958 mm (3 ft. 1.7 in.)

   • Tooth bracket (A) installed on left side and bracket (E) installed on right side.

     Item	Measurement	Specification
     Spacing Between Tooth	Distance	860 mm (2 ft. 9.9 in.)




4. Install pivot pins (B), cotter pins (D) and locking pins (C).
