Install and Remove Heavy-Duty Multiple Bale Grapple Inferior Teeth

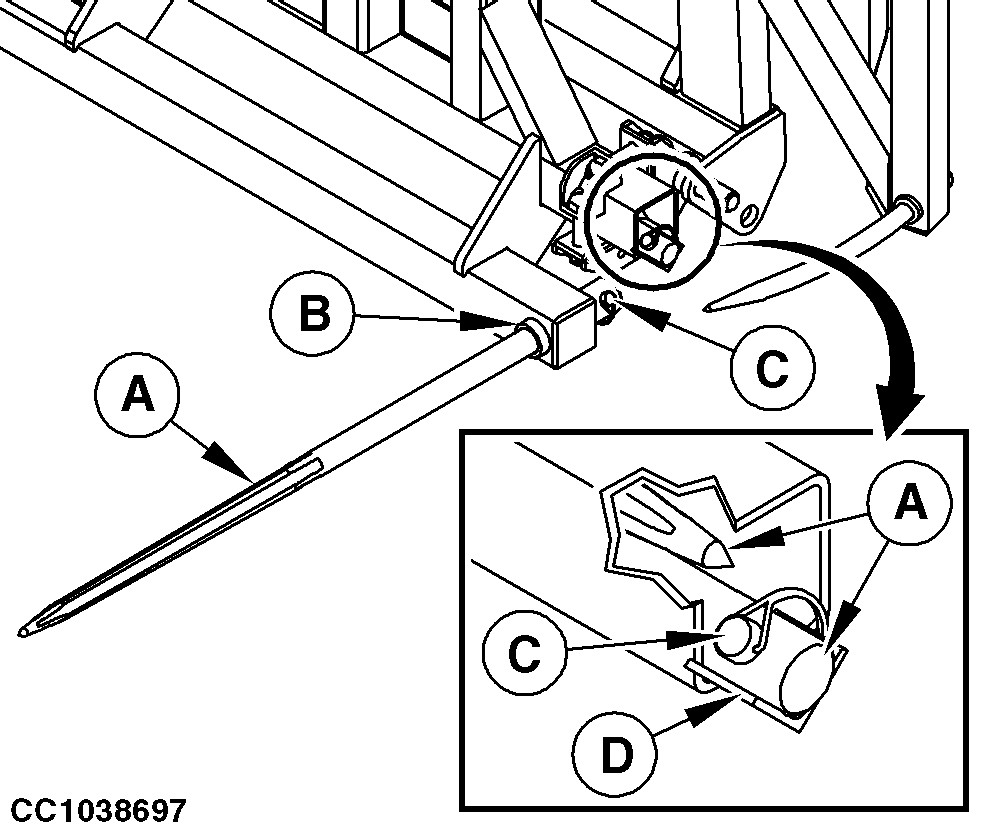

CC1038697
CC1038697-UN-10DEC12

A - Tooth

B - Working Position

C - Shaft Locking Pin

D - Storage Position

Install bale grapple inferior teeth:

  1. Remove shaft locking pin (C).

  2. Remove tooth (A) from its storage position (D).

  3. Install tooth (A) on working position (B) and install shaft locking pin (C).

  4. Repeat procedure on opposite side.

Remove bale grapple inferior teeth:

  1. Remove shaft locking pin (C).

  2. Remove tooth (A) from its working position (B).

  3. Install tooth (A) on storage position (D) and install shaft locking pin (C).

  4. Repeat procedure on opposite side.

OUCC006,00019F2-19-20121207
