Set Heavy-Duty Multiple Bale Grapple Frame Position for ISO or Combi ISO/SMS and ISO/MX Carrier

CC1038698

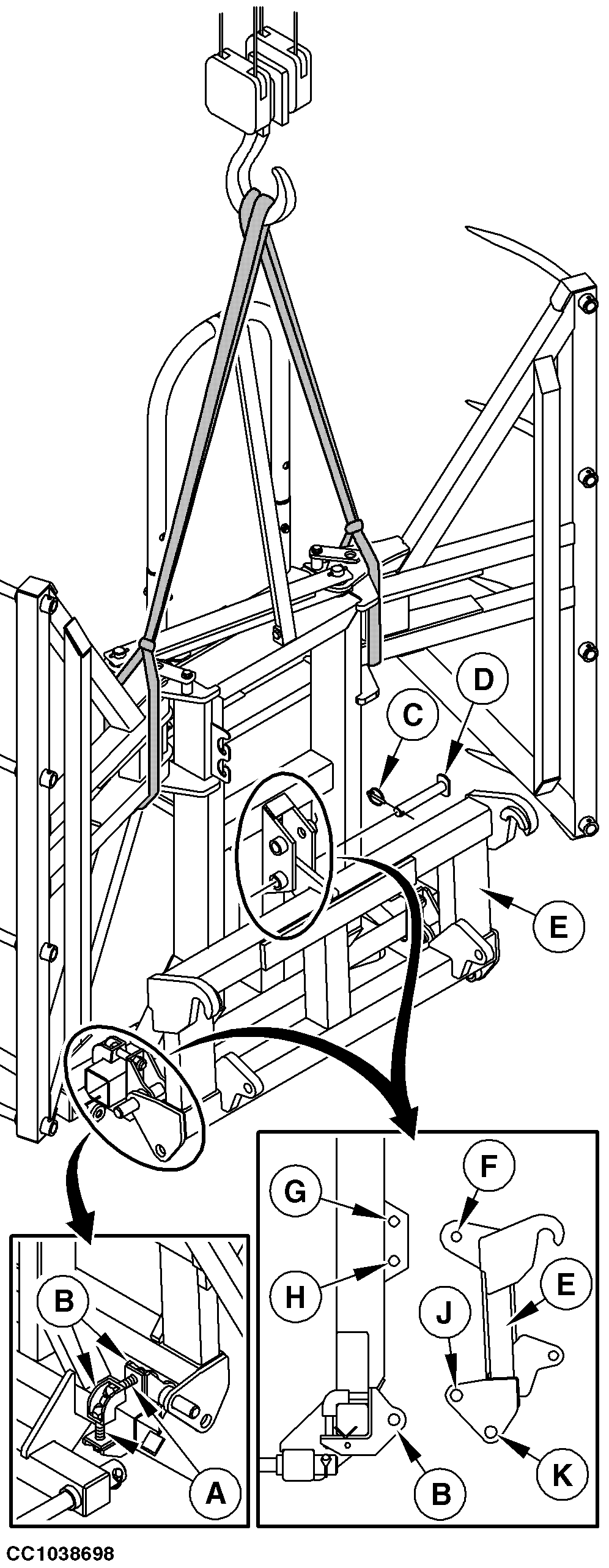

CC1038698-UN-10DEC12

A - Fixing Screw

B - Clamp

C - Shaft Locking Pin

D - Pin

E - Bale Grapple Frame

F - Hole

G - Combi ISO/SMS and ISO/MX Carrier Hole

H - ISO Carrier Hole

J - ISO Carrier Hole

K - Combi ISO/SMS and ISO/MX Carrier Hole

Heavy-duty multiple bale grapple frame may be set in two different position depending on loader carrier type. Following procedure describe how to set the heavy-duty multiple bale grapple frame for carrier ISO or carrier combi ISO/SMS and carrier combi ISO/MX:

CAUTION: To help prevent personal injury or death caused by a falling heavy-duty multiple bale grapple, always secure attachment by using lifting equipment prior modifying the frame position.

  1. Attach heavy-duty multiple bale grapple with adequate lifting equipment as shown to prevent attachment to fall.

  2. On both sides, remove fixing screws (A).

  3. Slide and remove clamps (B).

  4. Maintain frame (E) then remove shaft locking pin (C) and pin (D).

  5. Position frame (E) according to the loader carrier type:

    • If loader is equipped with ISO carrier, align hole (F) and hole (H) then install pin (D) and shaft locking pin (C). Install clamps (B) by using holes (J).

    • If loader is equipped with combi ISO/SMS or ISO/MX carrier, align hole (F) and hole (G) then install pin (D) and shaft locking pin (C). Install clamps (B) by using holes (K). Set also loader carrier for ISO attachment position. See in Attach and Detach Bucket or Attachment section.

  6. On both side, install and tighten fixing screws (A).

OUCC006,00019F3-19-20121211
