Shut-Off Valve

CC006755-UN-28MAR95

W21865-UN-27SEP11

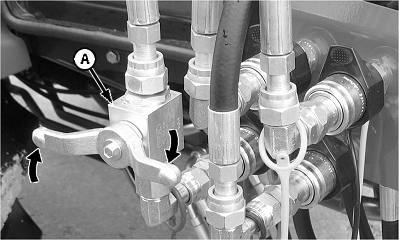

Mid-Mount Couplers Shown

CC1036914-UN-02FEB12

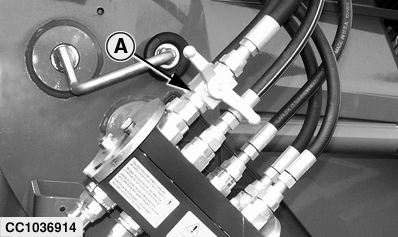

Multicoupler Shown

A - Shut-Off Valve

The shut-off valve is on the right side of the loader near the hydraulic coupler.

CAUTION: The shut-off valve (A) must not be used for servicing hydraulic components.

IMPORTANT: The shut-off valve (A) must not be in locked position when connecting or disconnecting hydraulic multicoupler.

1. Raise loader to required height.

2. Place transmission in PARK, apply park brake, shut off engine and remove key.

3. Turn shut-off valve (A) clockwise to lock the position of the loader.

   Turn shut-off valve (A) counter-clockwise to unlock the position of the loader.
