Attach Loader

CAUTION:

W21921
W21921-UN-22NOV11

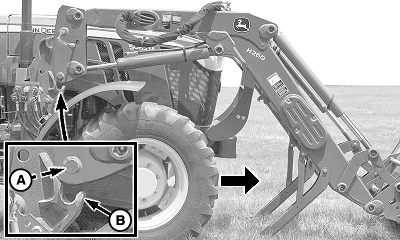

A - Pin (1 each side)

B - Saddle (1 each side)

DO NOT allow bystanders nearby while attaching loader.

To prevent serious injury, allow only the operator to attach loader.

  1. Center tractor between loader masts, stopping tractor when both mounting frame saddles (B) are positioned under pins (A) on loader masts.

  2. Relieve hydraulic pressure: See in Safety section and see your tractor Operator’s Manual for specific procedures about relieving hydraulic pressure.

  3. CAUTION: Lock out SCV control levers before attaching/detaching loader to prevent loader movement and possible personal injury.

    Lock out loader control levers. See in Controls section and see your tractor Operator’s Manual for specific procedures.

  4. Place transmission in PARK and shut off engine.

  5. W21694
    W21694-UN-08NOV11

    Multicoupler—Tractor Side

    W21695
    W21695-UN-08NOV11

    W21696
    W21696-UN-08NOV11

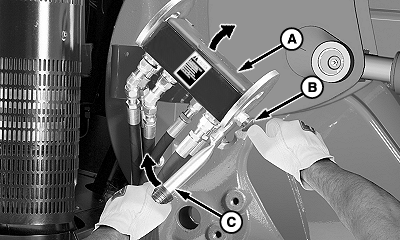

    A - Cover

    B - Knob

    C - Handle

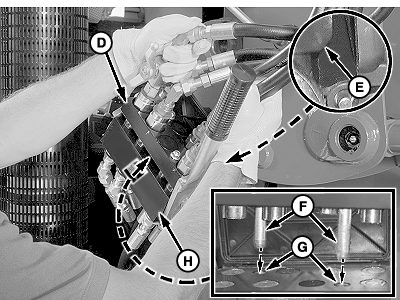

    D - Multicoupler, Loader Side

    E - Chamfered Edge

    F - Locating Pin

    G - Hole

    H - Multicoupler, Tractor Side

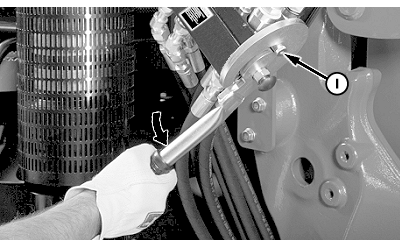

    I - Pin (1 each Side)

    If equipped with multicoupler, proceed as follows. Otherwise go to next step.

    IMPORTANT: The shut-off valve must not be in locked position when connecting hydraulic multicoupler. See in Service section.

    1. Push knob (B) IN and rotate handle (C) upward.

    2. Lift cover (A) and insert loader multicoupler (D), with chamfered edge (E) toward cover, onto tractor multicoupler (H). Make sure locating pins (F) on loader multicoupler fit into corresponding holes (G) in tractor multicoupler.

    3. Rotate handle (C) downward to engage pins (I) and lock coupler halves together.

    4. Connect electrical harnesses.


  6. If equipped with individual coupler, proceed as follows. Otherwise go to next step.

    CAUTION:

    W21738
    W21738-UN-26AUG11

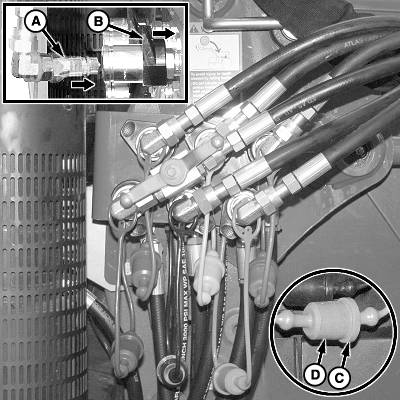

    Individual Coupler

    A - Individual Coupler, Male

    B - Individual Coupler, Female

    C - Plug

    D - Cap

    Avoid personal injury caused by unexpected loader movement. Hose connections must be correct for loader to respond as expected when control lever is moved.

    IMPORTANT: Before connecting coupler halves make sure that fittings are free of dirt and debris.

    NOTE: Hose connections have color-coded caps and plugs. If caps and plugs are missing, see in the Service section.

    1. Push and hold collar on female coupler (B).

    2. Match color-coded cap on hose end with same color-coded plug on the coupler. Insert hydraulic hose with male coupler (A) into female coupler (B).

    3. Release collar on female coupler (B).

    4. Connect color-coded plug (C) and cap (D) together.

    5. Repeat procedure for all couplers.

    6. Connect electrical harnesses.

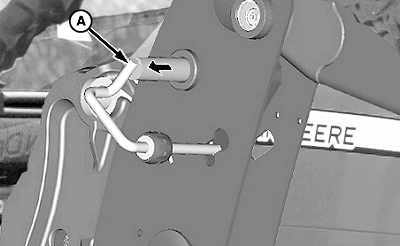

  7. Make sure mast pins (A) on both sides are fully retracted (pulled out) as shown.

    W21977
    W21977-UN-22NOV11

    Right Side Shown

    A - Mast Pin (1 each Side)


  8. Start tractor engine.

  9. Place transmission in NEUTRAL to allow tractor movement.

  10. Unlock loader control levers. See in Controls section and see your tractor Operator’s Manual for specific procedures.

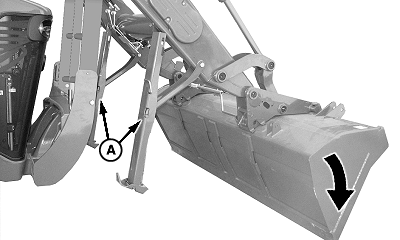

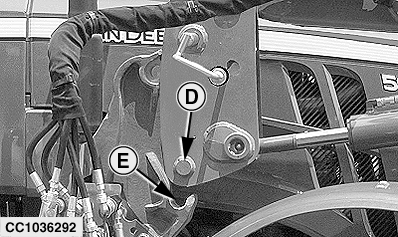

  11. Slowly dump bucket until mast (B) lowers, pins (D) rest in saddles (E) on both sides, and parking stands (A) are slightly off the ground.

    W20794
    W20794-UN-11MAY10

    CC1036292
    CC1036292-UN-17JAN12

    Right Side Shown

    W21979
    W21979-UN-22NOV11

    W21980
    W21980-UN-22NOV11

    A - Parking Stand

    B - Mast (1 each Side)

    C - Mast Pin (1 each Side)

    D - Pin (1 each Side)

    E - Saddle (1 each Side)

    F - Handle (1 each Side)

    G - Cradle (2 per Side)

    H - Bushing (2 per Side)

    I - Knob (1 each Side)

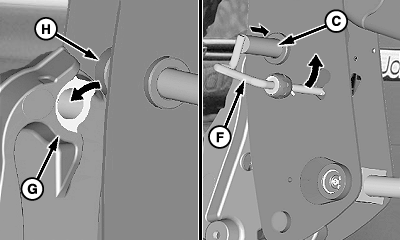

  12. Retract lift cylinders until mast bushings (H) are seated in cradles (G) on both mounting frames.

  13. Place transmission in PARK and shut off engine.

  14. On both sides of loader install mast pins (C):

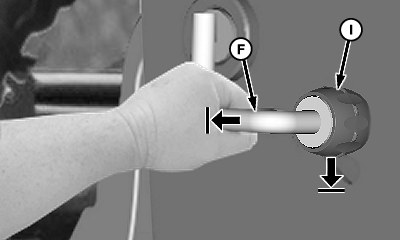

    1. Push in mast pin and rotate handle (F) upward until knob (I) locks into mast.

    2. To make sure knob (I) is securely locked in top hole in mast, pull on pin handle while attempting to rotate downward. Knob (I) is locked if handle does not move.

  15. On both sides of loader store loader parking stands:

    CAUTION:

    W21697
    W21697-UN-12AUG11

    Right Side Shown

    W21698
    W21698-UN-23AUG11

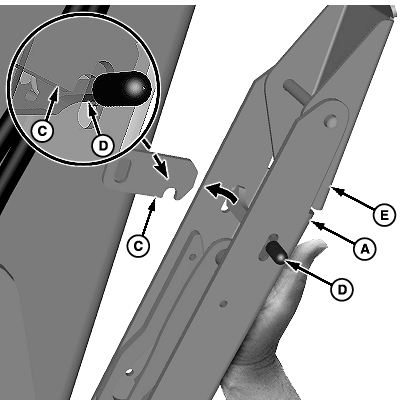

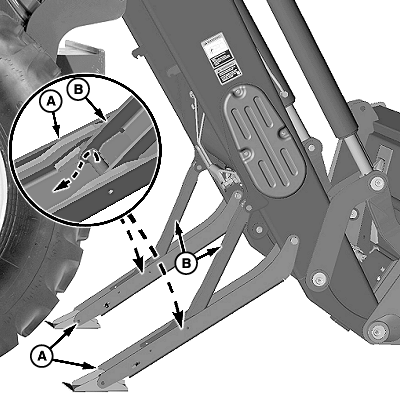

    A - Parking Stand

    B - Support

    C - Latch Plate

    D - Latch

    E - Foot Plate

    Avoid personal injury. Keep hands and fingers away from sides of parking stand (A) and foot plate (E) when placing in storage position.

    1. Pull out support (B) and slide down parking stand (A).

    2. Lift parking stand (A) and push upward toward bottom of boom.

    3. Using palm of hand, push parking stand (A) inward until latch (D) engages latch plate (C), locking parking stand in place.


  16. Check loader operation.
