Operate the Round Bale Grapple and Gripper

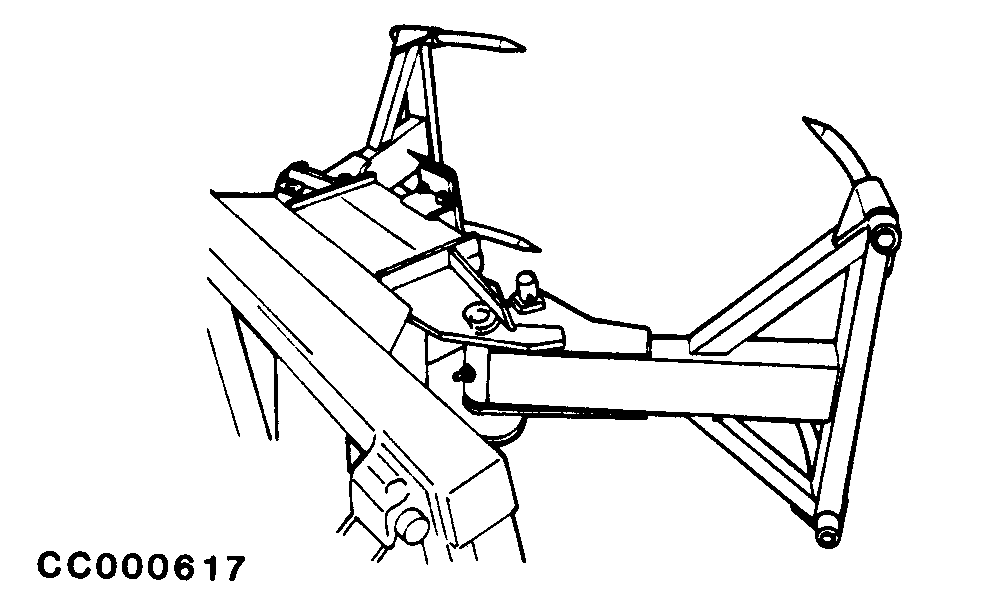

CC000617-UN-29MAR95

CC1018058-UN-18JUL00

Standard Multi-Function Lever

CC1036555-UN-27JAN12

Multi-Function Lever with Integrated Loader Suspension Control

A - Rocker Switch

B - 3rd Function

C - 4th Function

D - MEMOSYSTEM Switch

E - Lever

IMPORTANT: DO NOT handle bales that exceed maximum attachment bales weight capacity. See Attachments section to obtain maximum bales weight capacity for each attachment.

1. Bale grapple and gripper operated with a 3-function ICV

   Press and release button (B) to select the third function. Press on bottom of rocker switch (A) to close the arms, press on top of rocker switch (A) to open the arms.

2. Bale grapple and gripper operated with a 2-function ICV and diverter valve

   Continuously press on button (B) then move lever (E) to the left-hand side to close the arms and to the right-hand side to open them.

   Move the lever to the neutral position before releasing button (B).

If opening and closing response is opposite to control movement, reverse the hydraulic connections on front end.

NOTE: The articulated bale gripper is specially designed to handle plastic wrapped silage bales.
