Operate the Round Bale Elevator

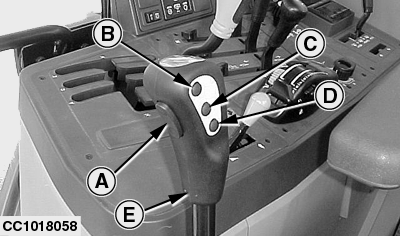

CC1018058-UN-18JUL00

Standard Multi-Function Lever

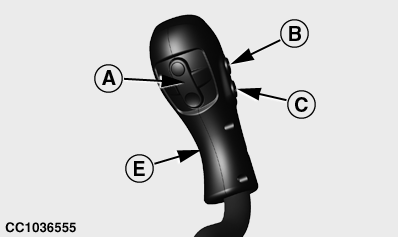

CC1036555-UN-27JAN12

Multi-Function Lever with Integrated Loader Suspension Control

A - Rocker Switch

B - 3rd Function

C - 4th Function

D - MEMOSYSTEM Switch

E - Lever

CAUTION: Help prevent bodily injuries or death, never use the round bale elevator to park the loader.

IMPORTANT: DO NOT handle bales that exceed maximum attachment bales weight capacity. See Attachments section to obtain maximum bales weight capacity for each attachment.

1. Bale elevator operated with a 3-function ICV

   1. Opening and closing grapple

      Press and release button (B) to select third function, then press on top of rocker switch (A) to open the bale grapple and on bottom of rocker switch (A) to close it.

   2. Raising and lowering the elevator

      Press and release button (C) to select fourth function, then press on top of rocker switch (A) to raise the elevator and on bottom of rocker switch (A) to lower it.

2. Bale elevator operated with a 2-function ICV and diverter valve

   1. Opening and closing grapple

      Continuously press on button (B) then move lever (E) to the left-hand side to close the grapple and to the right-hand side to open it. Move lever to the neutral position before releasing button (B).

   2. Raising and lowering the elevator

      Continuously press on button (C) then move lever (E) to the left-hand side to raise the bale elevator and to the right-hand side to lower it. Move lever to the neutral position before releasing button (C).

If opening and closing response is opposite to control movement, reverse the hydraulic connections on front end.
